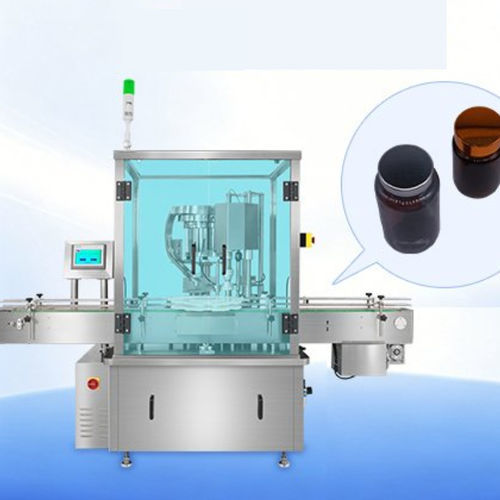

Intermittent-motion capping machine RD-XXG-70Pro

rotarymotor-drivenelectronically controlled

Overview
Star-wheel capping machine with precision indexing star-wheel and mechanical pick-and-place cap placement. Photoelectric sensors control the cap feeder and pause automatically when the delivery chute is full to prevent jams. Constructed in hygienic 316L stainless steel and designed for cGMP-compliant production, the machine is suitable for pharmaceutical, cosmetic and food packaging where scratch-free finishing and high accuracy are required. It integrates with counting, powder or liquid filling equipment to form modular bottling lines.

Working principle
The machine works on an intermittent indexing principle: bottles are conveyed into pockets on a custom-machined star-wheel which holds each bottle stationary during capping. Caps are sorted and delivered via a chute; photoelectric sensors regulate the feeder (pause when chute full, restart when empty). A mechanical pick-and-place arm positions caps onto bottle mouths for correct threading before the capping torque is applied, ensuring scratch-free and accurate tightening.

Specification (summary)

• Production speed: up to 70 bottles/min
• Suitable for various bottle diameters and shapes

Main Features

• Scratch-free capping heads and gentle mechanical movement to protect glossy or smooth caps
• Customizable star-wheel pockets for different bottle diameters and profiles
• Adjustable torque control for precise tightening without damaging bottles or seals
• Photoelectric sensor-controlled cap feeder to prevent jams and ensure continuous operation
• Seamless integration capability with counting, filling and sealing equipment for modular lines

Main Parts

• Bottle unscrambler / orienter
• Cap chute / cap track
• Cap inspection station
• Pick-and-place cap feeder mechanism
• Capping station
• Pneumatic capping head

Applications & Advantages
Suitable for pharmaceutical, nutraceutical, premium cosmetics and food packaging lines that require protection of cap finish and high assembly precision. Advantages include protection of cap surface, accurate threading to minimize cross-threading, stable handling of small or irregular bottles, and compatibility with cGMP production requirements.

Technical specifications

• Production capacity: 70 bottles/min
• Power supply: 3P 380/220V 50 Hz (customizable)
• Power: 1.2 kW
• Air consumption: 0.4 MPa, 30 L/min
• Weight: 750 kg
• Dimensions: 2,400 × 900 × 1,800 mm
• Construction materials: hygienic stainless steel (316L)
