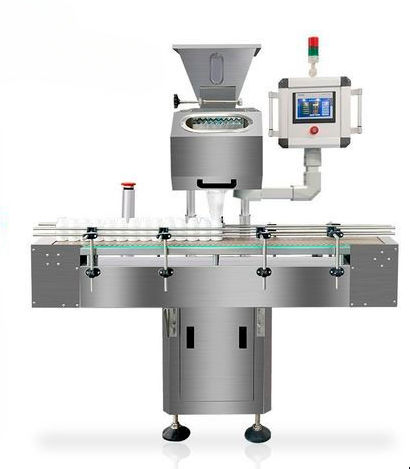

Tablet counting machine RD-DSL-8B

for the pharmaceutical industryautomatic

Product overview
8-lane automatic tablet counting machine RD-DSL-8C designed for precise counting of tablets, capsules and gummies in pharmaceutical and nutraceutical production. Equipped with infrared photoelectric sensors, CCD camera inspection, optional AI/image-recognition and dedicated control software, it delivers traceable counts and facilitates integration into automated filling lines for cGMP-compliant workflows.

Specification (summary)

• Counting throughput: up to 30–50 bottles/min depending on product and configuration
• Applicable product sizes: 3–40 mm (capsules, tablets, gummies)
• Counting and inspection technologies: infrared photoelectric sensors, CCD camera inspection, optional AI/image-recognition modes
• Customizable counting modes, cross-equipment compatibility and data logging for traceability

Main Features

• High-precision counting for varied tablet shapes and sizes with minimal error rates
• cGMP-compliant enclosed design with dust-resistant channels to reduce contamination risk
• Modular, easy-to-clean drug-contact parts to simplify maintenance and sterilization
• AI and multi-sensor integration for real-time verification and reduced false counts
• Anti-interference measures to mitigate errors from dust, static or fragments
• Flexible connectivity for integration with unscramblers, cappers and labelers

Main Parts

• Vibration channel
• Patented flip plate
• Counting module
• Pneumatic filling system
• Photoelectric sensors / photoelectric eye

How it works
The RD-DSL-8C separates items via synchronized vibration channels and mechanical feeding; sensors and CCD cameras inspect each item while control software aggregates counts and actuates pneumatic filling. Count data are logged for traceability and quality control.

Caractéristiques / spécifications techniques

• Model: RD-DSL-8C
• Capacity: 30–50 bottles/min (typical)
• Applicable product size: 3–40 mm
• Voltage: 380/220 V 50 Hz (customizable)
• Power consumption: 0.6 kW
• Outline dimensions: 1,400 × 1,650 × 1,650 mm
• Design: enclosed, dust-resistant conveying and counting channels
• Materials: drug-contact parts designed for easy cleaning and corrosion resistance
