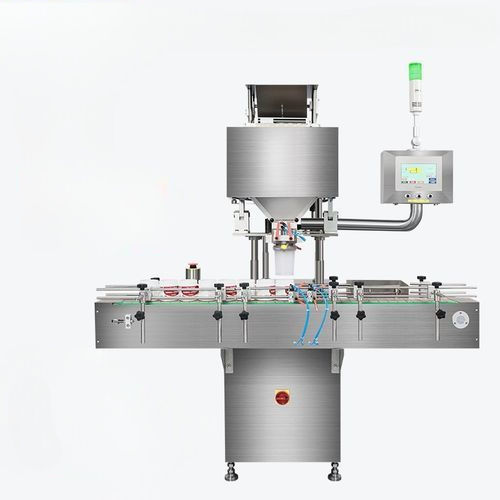

Bottle pack counting and filling machine RD-DSL-8D

small food productsfor food contactfor the food industry

Product Overview Candy counting and bottle filling machine is designed to count and pack gummies into containers with high precision. It operates at high speed to enhance production efficiency and can be adjusted to count different types and sizes of gummies and accommodate different container sizes.

Operation & Benefits The machine automatically feeds, counts, and dispenses gummies into containers, ensuring accurate dosing, reducing labor costs, and improving production efficiency. Key advantages include precise portioning to prevent overfilling or underfilling and suitability for high-volume gummy packaging in food and confectionery production lines.

Main Features

• High-speed operation: capable of counting and filling large quantities quickly.
• High precision: counting mechanism ensures accurate and consistent filling.
• Customization: adjustable settings for different gummy types, sizes, and container formats.

Gummy Counting Machine Advantage

• Teflon coating: contact areas are Teflon coated with a dimple plate to prevent sticking.
• PTFE inlet roller: customized roller at inlet to break up candy as needed.
• PTFE discharge port: larger port design to avoid blocking and sticking.
• Pneumatic discharge: vibration at discharge port to prevent blockage for large candies.

Main Parts

• Hopper roller
• Special sliding piece
• Teflon + dimple channel
• Large Teflon filling port
• Pneumatic filling

How it works The machine feeds gummies automatically, counts them with high accuracy, and dispenses them into bottles or containers. It is also suitable for counting capsules, tablets, and pills and can be integrated into pharmaceutical, chemical, and health care product production lines.

Technical specifications

• Production capacity: 55 bottles/min
• Accuracy rate: > 99.98%
• Lead time: 10 days
• Applicable products: suitable for 3-40 mm gummies (pectic, sugar-coated, oiled), tablets, capsules
• Voltage: AC380/220V 50/60Hz (customizable)
• Weight: 650 kg
