Bottle pack counting machine RD-DSL-8Max

capsulefor the pharmaceutical industryfor pharmaceutical applications

Overview

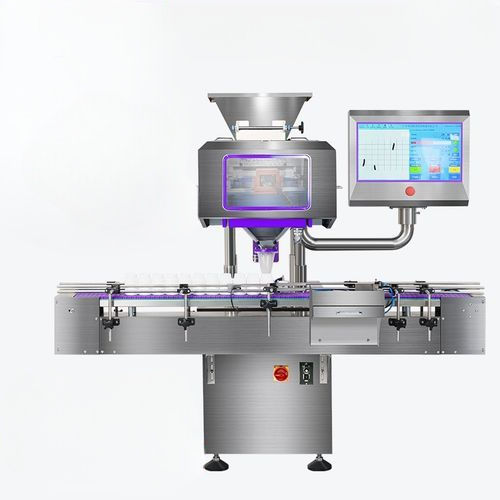

The CCD-70 visual counting machine uses CCD cameras to detect and count tablets, capsules or similar items on a conveyor. The system captures images, analyses shape, size and color against programmed criteria, counts each item and flags defects such as double items, broken pieces or missing units for rejection or correction.

How it works

• Optical detection: CCD cameras capture high-contrast images of items moving on the conveyor and distinguish objects by size, shape and color.
• Counting mechanism: Image-analysis software identifies and counts each item, comparing results with pre-set batch targets.
• Error detection: The system flags doubles, fragments, contaminants or missing items and triggers rejection or diversion mechanisms.

Specification
Max. Output: 70 Bottles/min
Accuracy rate: 100%
Applicable products: suitable for 3–40 mm tablets, capsules or gummies
Voltage: 380/220 V 50 Hz (customizable)
Power: 0.6 kW
Outline dimensions: 1400 × 1650 × 1650 mm

Main Features

• High-speed visual counting for pharmaceutical packaging lines.
• CCD camera detection for precise differentiation by shape, size and color.
• Integrated error detection and automated rejection to maintain batch integrity.
• Minimal labor requirement through automated counting and reporting.
• Modular electrical configuration to meet regional voltage standards.

Advantages

• Reliable detection of doubles and missing units reduces out-of-specification packs.
• Optical analysis improves counting precision and traceability versus manual counting.
• Increases line throughput and reduces downtime related to manual checks.
• Reduces labor and associated handling costs in packaging operations.

Main Parts / Components

• CCD camera optical detection system
• PLC control unit and HMI
• Enclosed stainless-steel frame / modular conveyors
• Counting and pneumatic/electromechanical rejection mechanism

Technical specifications

• Max. Output: 70 Bottles/min
• Applicable size: 3–40 mm (tablet/capsule/gummy)
• Voltage: 380/220 V 50 Hz (customizable)
• Power: 0.6 kW
• Outline dimensions: 1400 × 1650 × 1650 mm
• Accuracy rate: 100%
• Capability: can remove items of different colors and sizes
