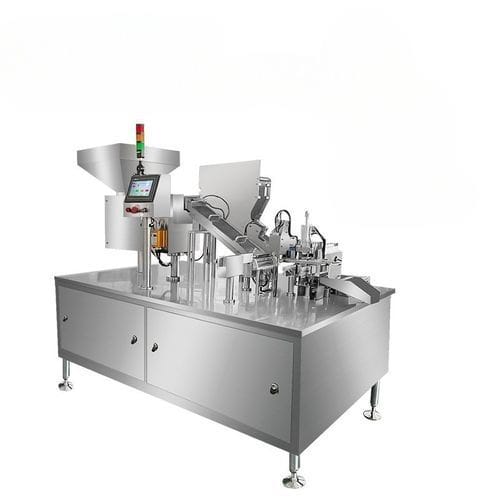

Automatic filling machine RD-ZGJ-80Pro

for tubesfor tabletsfor the food industry

Product overview
Automated effervescent tablet tube filling machine for precise packaging of dissolvable tablets into plastic or aluminum tubes. Vibratory feeding aligns tablets and feeds them into a custom mold; quantity per tube is configurable (typically 15–30 pcs/tube). Tablets are transferred into sterilized tubes via a cylinder. Photoelectric sensors verify counts; compliant tubes are capped and non‑conforming tubes are rejected.

Applications

• Pharmaceuticals (e.g., vitamin C effervescent tablets)
• Nutraceuticals (electrolyte and supplement tablets)
• Food and health product packaging

How it works
The machine counts tablets into dedicated molds, transfers them into sterilized tubes using a piston/cylinder system, inspects quantity with photoelectric sensors and optional vision systems, then automatically caps and ejects rejected tubes. Operators load tubes and caps via vibratory feeders while tablets are dispensed from hoppers through adjustable slide channels to control fill counts.

Specification

• Speed: up to 60–80 tubes/min (typical 60–80)
• Warranty: 3 years; 1 year free parts
• Designed for pharmaceutical, food and health care production

Main features

• High‑speed precision counting up to 80 tubes/min using vibratory feeders and photoelectric sensors
• Optional nitrogen purge to prevent moisture uptake and oxidation
• Intelligent quality control: vision inspection and weight checks to reject tubes with missing, cracked or incorrect counts
• GMP‑compliant stainless steel construction with CIP/SIP compatibility options

Main parts

• Cap sorting device
• Oscillating disk
• Feeding channel
• Tablet push‑into‑tube mechanism
• Press capping station

Additional notes
Advanced models integrate vision inspection (chip/crack detection) and real‑time production monitoring. Equipment can be scaled and integrated into a full effervescent tablet line including tablet press, deduster, labeling, cartoning and palletizing systems.

Technical specifications

• Capacity: 60–80 tubes/min (typical; peak up to 80)
• Accepted tube height: 89–145 mm
• Adjustable fill quantity: typically 15–30 tablets/tube (configurable via slide channels)
• Power: 5 kW
• Air consumption: 0.28 m³/min
• Overall dimensions: 5,800 × 2,260 × 1,800 mm
• Construction: stainless steel; GMP/FDA/CE design options
• Optional systems: vision inspection, nitrogen flushing, weight checks, CIP/SIP compatibility
• Quality control: photoelectric sensors for count verification; automatic rejection of defective tubes
