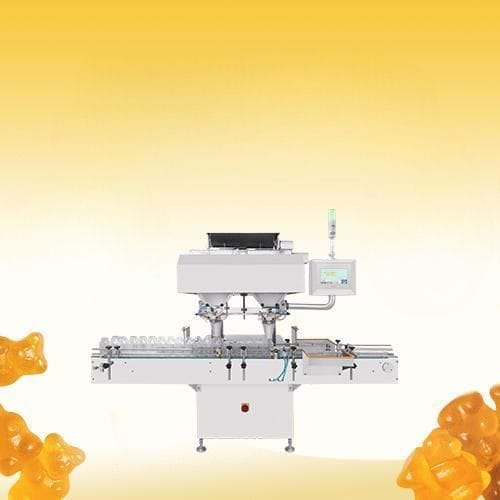

Bottle pack counting machine RD-DSL-16H

small food productsfood-gradefor the pharmaceutical industry

Product Overview
RD-DSL-16H gummy counter machine is an automated high-speed counting and bottling solution designed for pharmaceutical and confectionery lines handling sticky or soft products. The system gently conveys gummies or softgels along Teflon-coated vibratory lanes to a counting track where 360° infrared sensors register each piece and discharge them into bottles or containers via a PTFE chute. Operations occur in a closed hygienic environment to reduce contamination risk and product exposure while protecting fragile items.

Specification
Model: RD-DSL-16H (high-speed counting machine)
Production capacity: 100 bottles/min
Applicable product size: 3–40 mm (pectin, sugar, oiled candy, gummies, tablets, capsules, softgels)
Voltage: AC380/220V 50/60 Hz (customizable)
Weight: 950 kg
Materials (product contact): Food-grade Teflon (PTFE) coatings; 316L stainless steel agitators
Counting sensors: 360° infrared sensors
Separation systems: PTFE Precision Flow Separator, PTFE DynaGrid Separation Roller, pneumatic discharge nozzles

Main Features

• Teflon-coated, streamlined "raindrop" contact surfaces to minimize friction and sticking on all product-contact parts.
• Pre-separation 316L stainless-steel stirring rod at the hopper entrance to break apart clusters and ensure continuous feed.
• PTFE Precision Flow Separator to maintain single-file product flow and prevent double-feeds.
• Enlarged PTFE discharge port to accommodate larger gummies and avoid bottlenecks at high speed.
• Pneumatic vibratory bottle-entry nozzle providing soft pneumatic motion to prevent trapping at bottle openings.

Gummy Bottler Advantages

• Prevents clogging using 316 stainless-steel agitators.
• Reduces stacking with PTFE DynaGrid separation rollers.
• Sustains smooth flow via Teflon-coated vibratory conveyor lanes.
• Eliminates discharge blockages using pneumatic-driven nozzles.

Main Parts

• 316L Stainless Steel Agitators
• PTFE DynaGrid Separation Roller
• Teflon-coated Vibratory Conveyor Lanes
• PTFE Large-size Discharge
• Gummy Pneumatic Filling Nozzle

Complete Line & Packaging Options
A complete automatic counting and bottling line can include: bottle unscrambler, high-speed counting machine, metal detector, checkweigher, capping machine, induction sealing, labeling or sleeve application, and coding/marking systems. Support is available for pouch fill-and-seal workflows with pre-made pouch packers, optional nitrogen flushing and controlled heat sealing.

Delivery & Warranty
Delivery: 10 days. Warranty: 3 years.

Technical specifications

• Model referenced in product text: RD-DSL-16H (high-speed counting machine)
• Production capacity: 100 bottles/min
• Applicable product size: 3–40 mm (pectin, sugar, oiled candy, gummies, tablets, capsules, softgels)
• Voltage: AC380/220V 50/60 Hz (customizable)
• Weight: 950 kg
• Materials / contact surfaces: Food-grade Teflon (PTFE) coatings; 316L stainless steel agitators
• Counting sensors: 360° infrared sensors
• Separation / anti-clog systems: PTFE Precision Flow Separator, PTFE DynaGrid Separation Roller, pneumatic-driven discharge nozzles
