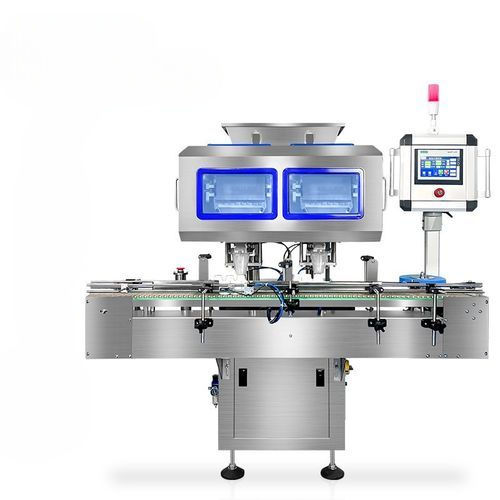

Bottle counting machine RD-DSL-16C

for the pharmaceutical industryfor pharmaceutical applicationsautomatic

Overview

• Automatic tablet and capsule counting machine designed for pharmaceutical packaging lines, providing precise counting for tablets, capsules and similar oral solid dosage forms.
• Photoelectric Sensor Technology: High-resolution optical sensors scan particles on a vibratory feeding tray, detecting sizes from 3 to 40 mm or irregular shapes to ensure accurate counting.
• Vibratory Feeding System: Controlled vibration separates and aligns units into single-file flow to prevent overlaps and jams during counting.
• Rejection Mechanism: Miscounted or defective units are automatically diverted via a pneumatic rejection system, enabling counting accuracy up to 99.8% suitable for regulatory audits.

How it works
Units pass along a vibratory feeding channel and are individually scanned by photoelectric sensors; detected defects or miscounts are rejected pneumatically, ensuring accurate quantities for downstream packaging processes.

Specification
Capacity: 70 bottles/min
Applicable: 3-40mm tablet, capsule, gummy
Voltage: 380/220V 50Hz (customizable)
Power: 1.2KW
Outline dim.: 1600×1650×1500mm

Main Features

• Enclosed vibration channel to reduce contamination and product loss
• 3-stage vacuuming for reliable handling
• Patent small flap for improved singulation
• Adjustable lifting mechanism
• High automation to minimize manual intervention and labor costs
• Handles various tablet and capsule sizes and shapes for flexible packaging
• Pneumatic rejection system for defective unit diversion

Main Parts

• Enclosed vibration channel
• Three-stage vacuuming system
• Patent small flap
• Adjustable lifting mechanism

Advantages

• Rapid processing to increase production throughput
• Precise counting to reduce errors and maintain product quality
• Highly automated and reliable operation
• Adaptable to different tablet and capsule formats

Technical specifications

• Capacity: 70 Bottles/min
• Applicable size range: 3-40 mm (tablet, capsule, gummy)
• Detection: Photoelectric / high-resolution optical sensors
• Feeding: Vibratory feeding system for single-file alignment
• Rejection: Pneumatic rejection mechanism (automatic defective-unit diversion)
• Counting accuracy: up to 99.8%
• Voltage: 380/220V 50Hz (customizable)
• Power: 1.2 KW
• Outline dimensions: 1600 × 1650 × 1500 mm
• Design highlights: enclosed vibration channel, 3-stage vacuuming, patent small flap, adjustable lifting
