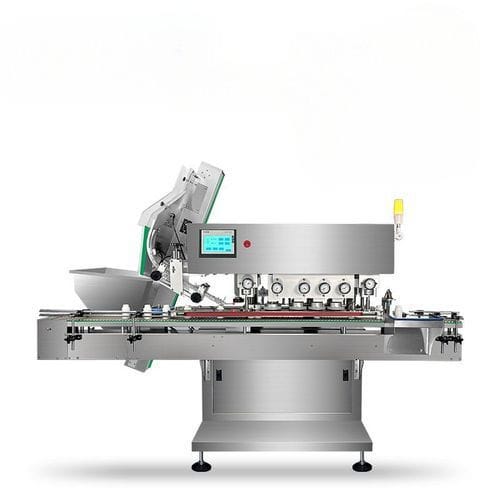

High-speed capping machine RD-XGJ-120

continuous-motionautomaticfor bottle packs

Product Description High-speed capping machine for automated placement and tightening of caps on containers in continuous production. The unit includes a cap chute that feeds sorted caps to the capping head, and a positioning system (star wheel or timing screw) to align containers under the capping head for consistent application.

How the Capper Works The machine integrates with upstream and downstream equipment (bottle unscramblers, counting units, desiccant inserters, sealing devices) to form a complete bottling line. A PLC synchronizes container and cap movement, manages torque settings and monitors operation. Built for high throughput with quick changeovers for different container and cap sizes.

Specification

• Up to 120 bottles/min
• 7 days delivery
• Compatible with a wide range of bottle shapes and cap types

Technical Table Production capacity (bottles/min): 120
Bottle diameter: Ø30–Ø80 mm
Cap diameter: Ø25–Ø60 mm
Maximum bottle height: ≤150 mm
Power supply: 220/380V 50/60 Hz (customized)

Main Features

• PLC control for synchronization, torque control and operational monitoring
• Adjustable torque system to prevent under- or over-tightening
• High-speed design for continuous, large-volume capping
• Inspection station with sensors or cameras and automatic rejection of defective units
• Outfeed conveyor for transfer to labeling or packaging

Main Parts

• Capping device
• Scale adjust
• Rejection unit (inspection reject)
• Worm gearbox / worm gear power device
• Siemens touch screen

Technical specifications

• Production capacity: 120 bottles/min
• Bottle diameter range: Ø30 to Ø80 mm
• Cap diameter range: Ø25 to Ø60 mm
• Maximum bottle height: 150 mm
• Power supply: 220/380V 50/60 Hz (customizable)
• PLC-based control for synchronization and monitoring
• Torque control system for precise tightening
• Automated inspection and rejection for defective caps
• Designed for quick changeovers and integration into bottling lines
