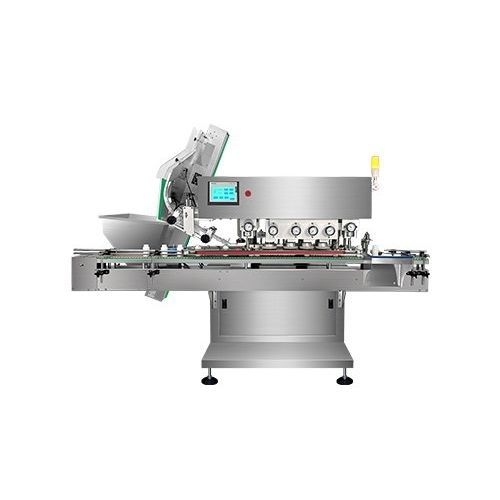

Fully-automatic bottling line RD-DSL series

Overview The RD-DSL count bottling line is designed for accurate automated counting and filling of tablets, capsules and gummies into bottles for pharmaceutical and nutraceutical production. The modular line integrates feeding, counting, filling, desiccant insertion, capping, sealing and labeling with PLC control for synchronized operation.

Main process

• Bottle unscrambler: organizes and feeds empty bottles to the filling station.
• Counting filling (counting machine): controlled nozzles dispense the counted tablets, capsules or gummies into each bottle.
• Desiccant inserter: inserts desiccant sachets as required.
• Capping machine: places and tightens caps (screw-on, press-on or snap-on types).
• Sealer (induction sealer optional): applies tamper-evident seals when required.
• Labeling machine: applies labels with product information, batch numbers and expiry dates.
• Quality control: camera/sensor inspection verifies fill level, cap presence and label accuracy; defective bottles are rejected automatically.
• Packing station: sealed and labeled bottles are collected and packed into cartons or boxes (manual or automated).
• Control system: PLC synchronizes line components, monitors production data and supports recipe management.

Specification summary Capacity options: 50 / 70 / 100 bottles/min depending on model. Typical delivery time: 15 days. Suitable for products sized 3–40 mm (tablets, capsules, gummies). Power: 380/220V 50/60Hz (customizable).

Specifications table
Model: RD-DSL-8D Line | RD-DSL-16C Line | RD-DSL-16H Line
Application: 3–40 mm tablets, capsules, gummies
Capacity (bottles/min): 50 | 70 | 100
Power: 380/220V 50/60Hz (customizable)

Main parts

• Bottle unscrambler
• Tablet/capsule counting machine
• Desiccant inserter
• Capping machine
• Sealing machine
• Labeling machine

Notes Suitable for pharmaceutical and health-product production lines. Can be integrated with cartoning machines and automated packing stations for downstream packaging.

Technical specifications

• Application range: tablets, capsules and gummies 3–40 mm.
• Model family: RD-DSL series (RD-DSL-8D / RD-DSL-16C / RD-DSL-16H).
• Capacity options: 50, 70 or 100 bottles per minute.
• Power supply: 380/220V 50/60Hz (customizable).
• Delivery time: approx. 15 days.
• Control: PLC-based system for synchronization and monitoring.
• Quality control: integrated camera/sensor inspection with automatic rejection.
• Integration: compatible with cartoning machines and automated packing stations.
