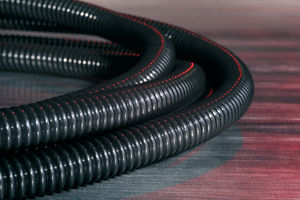

PMA AG offers more than 25 different conduit types for a variety of applications in cable protection. The PMAFLEX range offers conduits for technically demanding applications and special requirements.
Conduit sizes range from 4.5 mm to 125 mm diameters, from lightweight to heavyweight and pliable to highly flexible. Standard colours are black and grey.
Many conduits are specially approved, e.g. CSA, UL Recognition, NF, SNCF, DB etc.
|
|
These divisible connectors are suitable for repairs or where cable protection systems have to be installed after wiring.
The divisible connectors in connection with the divisible conduits and divisible lock nuts are responsible for the highest possible mounting flexibility.
|
|
|
|
|
|
NORDUC® tubes and connectors
The NORRES corrugated plastic protection tubes, NORDUC®, are highly flexible and liquid tight.
Applications
- for electrical installations, installation in switchboard plant, switch cabinets, mechanical engineering and robotics
- as suction and pressure hose for gaseous and liquid media
- for hydraulic and pneumatic hoses
- for moving machine parts
Properties
- highly flexible
- gas and liquid tight
- good resistance to alkalis and acids
- good resistance to UV and ozone
- kink-proof
- approved to UL94 (flame-retardant), partically up to fire class V0
- easy to cut through
- also available in large diameters
IP 68 to EN/ IEC 60529
Temperature Range
from -40 °C up to +135 °C (short time +150 °C approx.)
Construction and material

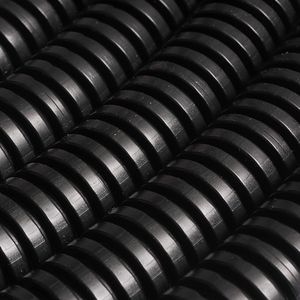

- corrugated full plastic tube; wall: high grade polyamide, polypropylene (PPmod) or polyurethane
Connectors
Our one-piece NORDUC® connectors are quick and easy to fit. They are vibration resistant and also available in stock in large diameters.
|
|
Suitable for the protection of the cables for wall or floor application. High resistance to compression and crushes. ICTA code is manufactured in Halogen Free Low smoke materials and code TF1 for standard application. They all meet the EN 50086.2.2 Standards prescriptions.
|
|
Material : High Quality Polyamide6
Construction : Inside & Outside Corrugated all Plastic Hose
Protective : IP 68 acc.EN60529
Temperature Range : -40°C to +105°C
Short Term : up to +130°C
Self-Extinguishing : UL94-Vo, Halogen-Free
Color : Black & Grey
Connections : CPSFIX
Application : Machine tool, Plant Construction, Crane and Heavy machine
International Specification : VDE, CE, UL
Productions :
CPS flexible conduit - Polyamide 6, UL94-HB, Standard
PAH flexible conduit - Polyamide 6, UL94-Vo, Non flame
POH flexible conduit - Polyamide 6, UL94-Vo, Non flame, Strong structure
PAR flexible conduit - Polyamide 12, UL94-V2, Ultra flexible
PES flexible conduit - Polyethylene, Resistant to Acid, Alkali
PPS flexible conduit - Polypropylene, Resistant to Acid, Alkali
Dimension range :
Outer diameter - 10, 13, 15.8, 21.2, 28.5, 34.5, 42.5, 54.5, 67.2, 82.5, 106
|
|
Smooth inside, corrugated outside, double walled, protectiveunderground, large diameters conduits.
APPLICATIONS For cable conduits underground. Their flexibility an mechanical resistance allows installation even in the presence of irregularity of the ground.
MATERIAL HD, polyethylene high density.
High chemical and water resistance
COLOR Red.
Available also in green, yellow, black an blue on request with a minimum quantity of 2000m. per size/colour.
QUALITY MARKS NF-USE
STANDARDS CEI EN 50086-1
CEI EN 50086-2-4 (type N)
COMPRESSION RESISTANCE Higher than 450N on 5 cm. at +20°C
IMPACT RESISTENCE Type N (normal) at -5°C
3kg/h = variable with the size.
|
|
SUPERLUB® The internal lubricated surface makes easier to thread the cables, reduces the friction, overpasses the obstacles, avoid abrasion, crack and damages to electric wires.
APPLICATIONS

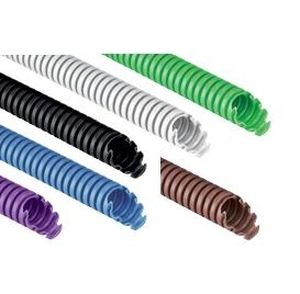

Where an higher mechanical resistance is required. It can be embedded under the floor, under plaster, in the ceiling.
|
|
Heyco-Flex II Liquid Tight Tubing
Flexible, Nonmetallic Liquid Tight Electrical Tubing
1/4" thru 2" trade sizes.
Use with nylon Heyco-Flex Connectors: Snap-In. Straight or Sweep.
May also be used with Heyco Die Cast Metal Rttings tor Liquid Tight Tubing.
Resists corrosion, oil, and water.
Maximum flexibility, can be used in extremely tight quarters.
Temperature rating 70°C (1608F).
Smooth inside tor easier wire pulling.
Lightweight and lower installed cosL
Quick installation; cuts with utility knife, PVC cutter or Heyco cutting tool (#8340).
Integral rigid and flexible PVC construction.
Ideal tor fiber optic cable protection.
Suitable tor use in high vibration or flexing applications: Automotive Equipment, Computers and Peripherals, Fiber Optics, Lab Equipment Lasers, Office Equipment, Processing Control and Monitoring Equipment, Robotics, White Goods
Passes submersion testof70psi.
Mounting Brackets are available.
|
|
Fibre Winding and Storage Reel
Multi-Position Array Tray
Polishing Puck
Flat Tie Holder
Richco Kwik Wrap, on Base, adhesive, Identification
Optical Fibre Duplex Splitter
Wire Saddle Locking Top and Quarter-Turn Base
Extruded Flat Cable Clamp
Extruded Flat Cable Clamp with Silicone Foam
Extruded Wire Harness Clip
Adjustable and Plug In Kwik Klip
Continuous Grommet Strip, w/Adhesive, Metal
Slit Harness Wrap and CAT Installation Tool
Richflex Flexible Channel
|
|
