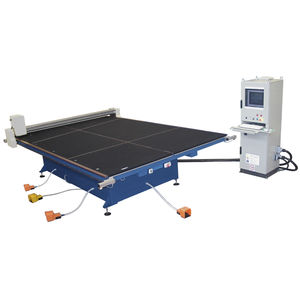

CCT - CNC GLASS CUTTING TABLES (STRAIGHT AND SHAPE)
Cutting size 3.700x2.600 mm or 6.000x3.210 mm. Cutting thickness range 2mm - 19mm. Accuracy± 0,2mm. Cutting speed from 0 to 120 m/min. Total power 10 Kw. Lenght 4.200mm. - Width 3.200mm. - Height 890-950mm. - Weight 2.400 kg. - Noise emission within 80 dB. CE brand.
CNC glass cutting machine for only straight is aviable.
|
|
High speed cutting table equipped with "brushless" motors on X and Y axes to allow a higher acceleration (working time reduced), a higher precision and to remove maintenance (the absence of brushes "brushless" system, maintenance-free).
With frame in robust electro welded steel of elevated torsion resistance, 4 cutting wheels (on request) for straight and shaped cutting on glass sheets to a maximum thickness of 25 mm.
TECHNICAL FEATURES
- Option for Low-E removal head
- Automatic oil dosing system according to cutting speed
- Total digitally governed axes
- Working speed up to 140 mt/min
- Instant electronic squaring of the bridge
- Stainless steel and reinforced metal plate frame
- New mechanical tilting system giving maximum efficiency an long lasting reliability
- Electric system with busfiled
- Double zero position for laminate cutting
-The Moving system runs along the X, Y axes by high-precision rack and pinion (GUDEL, from CH)
|
|
|
