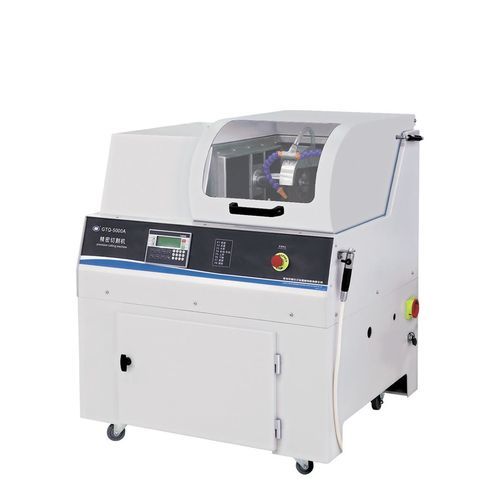

Rotary blade cutting machine GTQ-5000A

for ceramicsfor metalfor plastics

Overview
The GTQ-5000A precision cutting machine is designed for deformation-free, high-accuracy cutting of metals, electronic components, ceramic materials, crystals, cemented carbides, rock and mineral samples, concrete, organic materials and biological specimens such as teeth and bone. It provides precise positioning, a wide speed-adjustment range, strong cutting capability, a powerful recirculating cooling system, presettable feed rates, menu-based control with LCD display and automatic cutting to reduce operator fatigue and ensure consistent sample preparation. A spacious, well-lit cutting chamber with safety interlock and adjustable vertical travel of the grinding wheel for continued cutting after wear make this machine suitable for industrial, mining and research laboratories requiring high-quality test specimens.

Key features

• Automatic cutting function for repeatable, consistent sample preparation
• High positioning accuracy and wide speed-adjustment range
• Robust recirculating cooling system to minimize heat and deformation
• Menu-driven control with LCD display and presettable feed rates
• Spacious, well-lit cutting chamber with safety interlock
• Adjustable grinding wheel vertical travel to compensate for wheel wear

Main technical specifications

• Model: GTQ-5000A
• Feed rate: 0–1.50 mm/s (adjustment step: 0.01)
• Grinding wheel speed: 1950 r/min
• Maximum travel: Z-axis 50 mm; Y-axis 200 mm; X-axis (manual) 50 mm
• Cutting disc size: 250×1.5×32 mm
• Cutting power: 1500 W
• Input power: 1.8 kW
• Maximum cutting capacity: Φ80 mm
• Power supply: 380 V 50 Hz
• External dimensions (L × W × H): 1000×1035×1200 mm
• Weight: 210 kg
