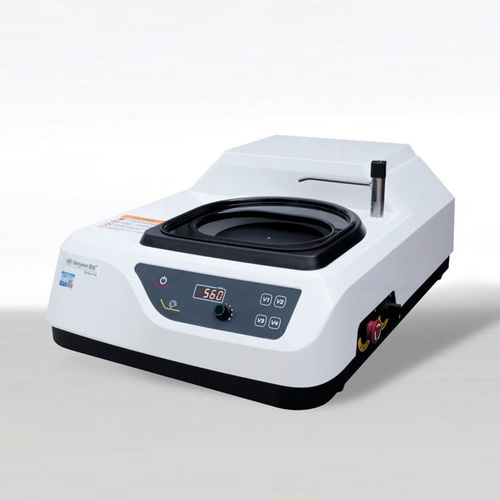

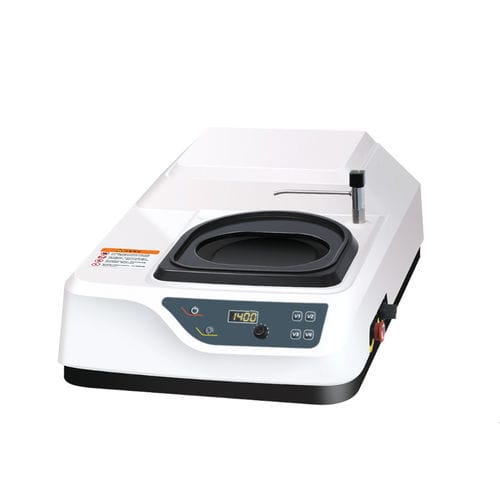

Metallographic sample grinding polishing machine MoPao®200

for sample preparationmanually-operatedfor metalographic laboratories

Product Introduction
This single-disc benchtop metallographic grinding and polishing machine (series MoPao200/250/300) provides selectable rotation direction and quick-change capability for the grinding/polishing disc. Microprocessor control enables separate operation of grinding and polishing stages by changing discs, metallographic abrasive papers or polishing cloths. The unit features smooth rotation, compact dimensions, low noise and a water-cooling system to cool specimens during grinding and prevent thermal damage to the metallographic structure. Suitable for industrial sample preparation, research institutes and university laboratories.

Main Technical Specifications
Grinding/polishing disc diameter: φ203mm / φ250mm / φ300mm
Polishing pad rotational speed: 0–1400 r/min (stepless via knob) / 0–1000 r/min (stepless via knob) / 0–600 r/min (stepless via knob)
Rotation direction: adjustable clockwise or counterclockwise
Fixed-speed settings: 150 r/min, 300 r/min, 600 r/min, 1000 r/min (four fixed speeds)
Input voltage: Single-phase AC 220V 50Hz
Input power: 0.75 kW
External dimensions: 594×785×320 mm
Net weight: 40 kg

Details of Consumable Gifts
1 | Adhesive-backed metallographic sandpaper | piece | 5 | 240#
2 | Adhesive-backed metallographic sandpaper | piece | 5 | 400#
3 | Adhesive-backed metallographic sandpaper | piece | 5 | 800#
4 | Adhesive-backed metallographic sandpaper | piece | 5 | 1200#
5 | Silk velvet with adhesive backing | piece | 3 |
6 | Diamond suspension grinding and polishing fluid | bottle | 1 | W2.5 500ml

Product Features
Single-disc benchtop design; selectable disc rotation direction; quick-change disc system; microprocessor control for separate grinding and polishing operations; water cooling for specimen protection; compact footprint and stable, low-noise operation.

caractéristiques / spécifications techniques

• Model (series): MoPao200/250/300
• Disc diameter: φ203mm, φ250mm, φ300mm
• Speed range (stepless): up to 1400 / 1000 / 600 r/min depending on disc
• Fixed speed positions: 150, 300, 600, 1000 r/min
• Rotation direction: adjustable clockwise/counterclockwise
• Input voltage: Single-phase AC 220V 50Hz
• Input power: 0.75 kW
• Dimensions (W×D×H): 594×785×320 mm
• Net weight: 40 kg
• Supplied consumables: adhesive-backed sandpapers (240#, 400#, 800#, 1200#), silk velvet (3 pcs), diamond suspension W2.5 500ml
