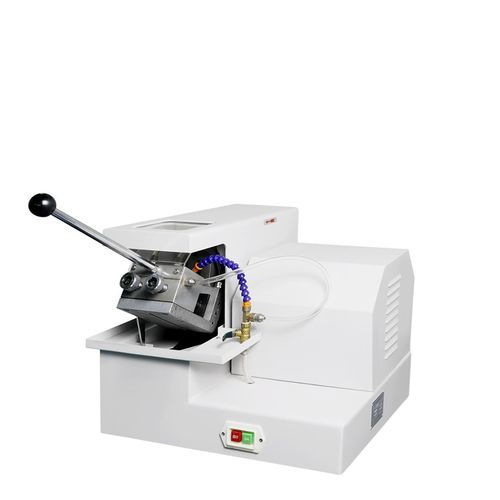

Rotary blade cutting machine iqiege®155Dfor metalsamplelaboratory
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- sample
- Applications
- metallographic, laboratory
- Workpiece loading
- manual loading
- Phase
- three-phase
- Configuration
- compact
- Other characteristics
- high-speed, economical, manual
- Maximum cutting height
55 mm
(2.2 in)- Laser power
2,200 W
- Overall length
650 mm
(26 in)- Maximum width
500 mm
(20 in)- Height
400 mm
(16 in)- Weight
80 kg
(176.37 lb)- Power supply
380 V
Description
Product Overview
The IQIEGE-155D is an entry-level metallographic sample cutting machine designed to section relatively hard metallic specimens with a high-speed thin-slice cutting wheel. A dedicated forced-cooling system removes heat during cutting to minimize thermal alteration of the microstructure. The unit offers a compact footprint, manual lever operation and focused functionality for routine laboratory and workshop use, making it a cost-effective option for factories, research institutes and university laboratories.
Main Technical Specifications
Maximum cutting cross-section: 55×55 mm
Maximum cutting diameter: 55 mm
Cutting disc: Φ300×2×32 mm
Spindle speed: 2,800 rpm
Motor power: 2.2 kW
Input power: Three-phase AC 380 V, 50 Hz
External dimensions (L×W×H): 650×500×400 mm
Net weight: 80 kg
Features / Technical specifications
The IQIEGE-155D is an entry-level metallographic sample cutting machine designed to section relatively hard metallic specimens with a high-speed thin-slice cutting wheel. A dedicated forced-cooling system removes heat during cutting to minimize thermal alteration of the microstructure. The unit offers a compact footprint, manual lever operation and focused functionality for routine laboratory and workshop use, making it a cost-effective option for factories, research institutes and university laboratories.
Main Technical Specifications
Maximum cutting cross-section: 55×55 mm
Maximum cutting diameter: 55 mm
Cutting disc: Φ300×2×32 mm
Spindle speed: 2,800 rpm
Motor power: 2.2 kW
Input power: Three-phase AC 380 V, 50 Hz
External dimensions (L×W×H): 650×500×400 mm
Net weight: 80 kg
Features / Technical specifications
- Model: IQIEGE-155D
- Designed for thin-slice cutting of relatively hard metals
- Dedicated forced-cooling protection to dissipate heat and prevent thermal microstructural distortion
- Cutting capacity: 55 mm (maximum cross-section 55×55 mm)
- Operation: Manual lever control
- Motor: 2.2 kW, spindle speed 2,800 rpm
- Cutting disc specification: Φ300×2×32 mm
- Power supply: Three-phase AC 380 V, 50 Hz
- External dimensions: 650×500×400 mm, net weight approx. 80 kg
