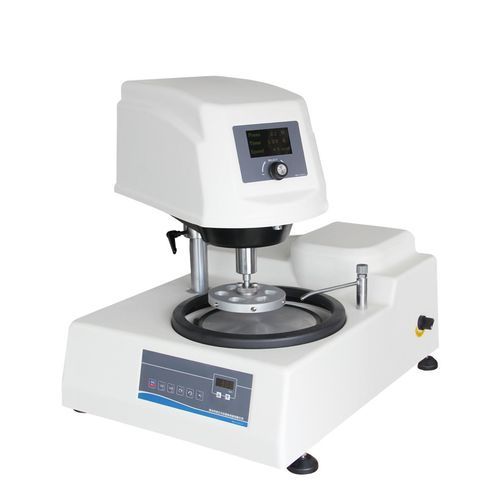

Metallographic sample grinding polishing machine MoPao®1000B

for sample preparationfor metalographic laboratoriessingle

Product overview
The MoPao®1000B is an automatic single-disc benchtop metallographic grinding and polishing machine designed for automated sample preparation in industrial, research and university laboratories. It supports selectable platen rotation direction, quick-change platen replacement, a multi-sample holder with mechanical center-force loading, and automatic abrasive delivery. Microprocessor control provides stepless speed adjustment of the platen and polishing head and user-friendly settings for sample pressure and processing time. The machine performs rough grinding, fine grinding and coarse-to-fine polishing; a water-cooling system prevents specimen overheating. The ABS housing and stainless-steel standard components ease cleaning and resist corrosion.

Key features
Selectable platen rotation direction; quick-change platen; multi-sample holder with mechanical center-force loading; automatic abrasive delivery; stepless speed adjustment for platen and polishing head; intuitive sample-pressure and processing-time settings; water cooling to prevent specimen overheating; ABS enclosure and stainless-steel components; compact bench-top design and low noise.

Main technical specifications
Grinding and polishing disc diameter : φ250 mm
Polishing pad rotational speed : 50–600 r/min (stepless); 150 r/min and 300 r/min (two-speed fixed)
Grinding and polishing head speed : 50–100 r/min (stepless)
Loading range : 5–150 newtons (N)
Sample preparation time : 60–999 seconds (s)
Specimen diameter : φ30 mm (customizable)
Input voltage : Single-phase AC 220V 50Hz
Input power : 700W
External dimensions : 632×750×700 mm
Net weight : 72kg

Consumable gifts (details)
1 | Adhesive-backed metallographic sandpaper | piece | 20 | 240#
2 | Adhesive-backed metallographic sandpaper | piece | 20 | 400#
3 | Adhesive-backed metallographic sandpaper | piece | 20 | 800#
4 | Adhesive-backed metallographic sandpaper | piece | 20 | 1200#
5 | Silk velvet with adhesive backing | piece | 3 | —
6 | Woolen fabric with adhesive | piece | 3 | —
9 | Diamond Suspension Grinding and Polishing Fluid | bottle | 1 | W2.5 500ml
10 | Diamond Spray Polishing Agent | bottle | 1 | W2.5 350ml

Applications
Automated preparation of metallographic specimens including rough grinding, fine grinding, coarse polishing and fine polishing. Intended for laboratory workflows in industrial facilities, research institutes and higher-education laboratories.

Features / Technical specifications

• Model (commercial name): MoPao®1000B
• Disc diameter: φ250 mm
• Polishing pad speed: 50–600 r/min (stepless); fixed 150 r/min and 300 r/min
• Head speed: 50–100 r/min (stepless)
• Loading (sample pressure) range: 5–150 N
• Sample prep time range: 60–999 s
• Specimen diameter supported: φ30 mm (customizable)
• Power supply: Single-phase AC 220V 50Hz
• Power consumption: 700 W
• Dimensions (W×D×H): 632 × 750 × 700 mm
• Net weight: 72 kg
• Cooling: water-cooling system to prevent overheating
• Construction: ABS housing and stainless-steel standard components
• Controls: microprocessor control with stepless speed adjustment and intuitive pressure/time settings
• Additional: quick-change platen, multi-sample holder with mechanical center-force loading, automatic abrasive delivery
