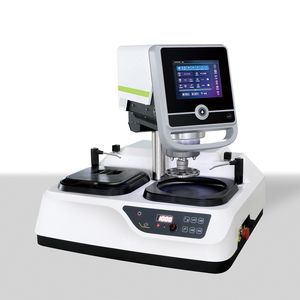

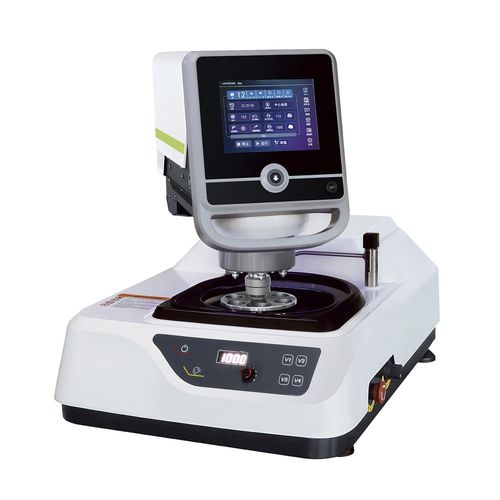

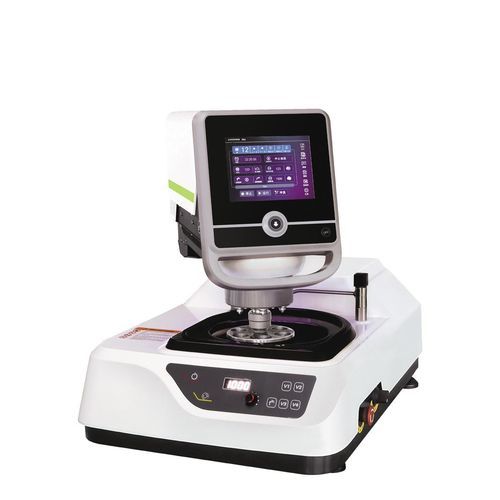

Metallographic sample grinding polishing machine Mopao 4

stepplatefor metalographic laboratories

Overview
The MoPao®4 automatic metallographic sample grinding and polishing machine is a next-generation, high-precision, fully automated sample preparation system designed for laboratory and production quality control. It integrates a microprocessor control unit with stepless speed adjustment for both the grinding/polishing disc and head, intuitive settings for pressure and time, and selectable rotation direction. Operators perform grinding and polishing operations by exchanging discs, metallographic abrasive papers and polishing cloths, enabling flexible workflows across material types.

Detailed Specifications
Model: MoPao®4
Power supply: Single-phase AC 220V 50Hz
Input power: 2.1 kW
Disc diameter: Φ250 mm (standard); optional Φ203 mm or Φ300 mm
Disc speed (stepless): 0–1000 r/min (20 rpm increment); 300 mm disc: 0–600 r/min
Fixed speeds: 150, 300, 600, 1000 r/min
Disc rotation: Clockwise or counterclockwise selectable
Head speed: 0–150 r/min (stepless)
Single-point loading: 5–60 N
Central loading: 20–200 N
Sample capacity: 6 specimens (standard)
Specimen sizes: Φ30 mm (standard); optional φ22 mm, φ25 mm, φ40 mm
Preparation time: 0–12 hours
Languages supported: 16
Program storage: Up to 256 grinding/polishing programs
Compressed air: >0.35 MPa (recommend regulator filter set to 0.5 MPa)
Dimensions (W×D×H): 596 × 714 × 707 mm
Net weight: 102 kg

Consumables included

• Adhesive-backed metallographic abrasive paper, piece, qty: 20 — 240#
• Adhesive-backed metallographic abrasive paper, piece, qty: 20 — 400#
• Adhesive-backed metallographic abrasive paper, piece, qty: 20 — 800#
• Adhesive-backed metallographic abrasive paper, piece, qty: 20 — 1200#
• Adhesive silk velvet pad, piece, qty: 3
• Adhesive wool cloth pad, piece, qty: 3
• Magnetic rubber pad, piece, qty: 1
• Non-stick trays, piece, qty: 5
• Diamond suspension grinding & polishing fluid, bottle, qty: 1 — W2.5 500 ml
• Diamond spray polishing agent, bottle, qty: 1 — W2.5 350 ml

Technical specifications

• Model: MoPao®4
• Power: Single-phase AC 220V 50Hz, rated input 2.1 kW
• Disc options: Φ250 mm (standard); optional Φ203 mm or Φ300 mm; disc speed 0–1000 r/min (300 mm disc 0–600 r/min)
• Head speed: 0–150 r/min (stepless)
• Disc steering: Clockwise or counterclockwise adjustable
• Loading modes: Single-point 5–60 N; central 20–200 N
• Capacity: 6 specimens (standard); specimen sizes available Φ22/φ25/Φ30/φ40 mm
• Programmability: Stores up to 256 programs
• Compressed air requirement: >0.35 MPa (recommend external regulator set to 0.5 MPa)
• Dimensions: 596 × 714 × 707 mm; net weight 102 kg
