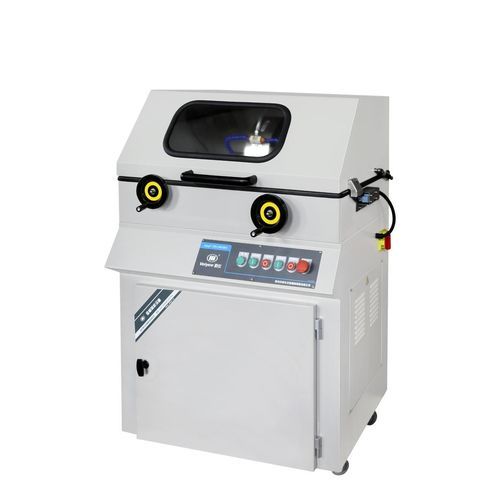

Rotary blade cutting machine Iqiege® 265D

for metalsamplelaboratory

Product overview
This metallographic cutting machine is designed to cut cylindrical, polygonal and other irregular metallographic specimens to facilitate microscopic examination of metallographic and petrographic microstructures. The fully enclosed double-shield construction protects the operator during cutting. A forced cooling system used with an appropriate coolant removes heat generated during cutting, preventing specimen overheating and thermal damage to microstructures. The specimen holder can be rotated to any required angle during cutting to minimize surface burns on separated sections and to increase the effective cutting cross-section, improving abrasive wheel utilization. The machine is intended for specimen preparation in industrial workshops and research laboratories and is straightforward to operate.

Main technical specifications
Maximum cutting diameter: Φ65mm
Rotational speed: 2,800 rpm
Abrasive wheel: Φ250×2×32mm
Power supply: 380V/50Hz
Input power: 1.6kW
Cutting power: 1.5kW
External dimensions: 870mm × 550mm × 1120mm
Weight: 230kg

Features / specifications

• Fully enclosed double-shield design for operator protection
• Forced cooling system to dissipate cutting heat and reduce thermal damage
• Specimen rotation to any angle to limit surface burns and increase cut efficiency
• Compatible with Φ250×2×32mm abrasive wheels
• Suitable for laboratory and production sample preparation
• Electrical supply: 380V/50Hz; input power 1.6kW, cutting power 1.5kW
• Compact footprint: 870 × 550 × 1120 mm; weight 230 kg
