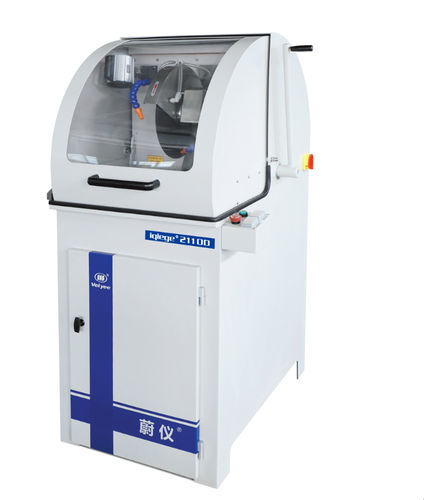

Rotary blade cutting machine iqiege® 2110Dfor metaltubemetallographic
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- tube
- Applications
- metallographic, for metalographic laboratories
- Configuration
- single-head
- Other characteristics
- manual
- X travel
400 mm
(15.75 in)- Y travel
320 mm
(12.6 in)- Tube diameter
110 mm
(4 in)- Overall length
1,050 mm
(41 in)- Maximum width
1,050 mm
(41 in)- Height
1,660 mm
(65 in)- Weight
400 kg
(881.85 lb)
Description
I. Overview
The iqiege® 2110D is a large upright metallographic cutting machine designed according to safety and environmental protection principles. It is intended for cutting specimens of metals, rocks, ceramics and other non-metallic materials to prepare samples for metallographic and petrographic microstructural analysis. The machine integrates cutting, cooling, illumination and cleaning systems and is suitable for laboratory specimen preparation.
II. Structure
The unit comprises a cutting system, cooling system, illumination system and cleaning/chip-removal system. The upper section is enclosed by a hinged protective guard with a large observation window and high-brightness lighting to monitor the cutting process. A manually operated swing-arm cutting lever (right side) facilitates handling of large workpieces. The grooved cast-iron workbench combined with a vise secures irregular parts. The coolant reservoir is located in the base and includes a filter screen for chip collection. Safety devices include a gantry-style safety switch and an explosion-proof guard.
III. Main Technical Specifications
Power supply: Three-phase 380V/50Hz
Cutting disc: Φ350×2.5×32 mm
Rotational speed: 2,300 rpm
Workbench dimensions: 400 mm × 320 mm
Maximum cutting diameter: Φ110 mm
Input power: 4.4 kW
Cutting motor power: 4 kW
External dimensions (W×D×H): 1050 mm × 1050 mm × 1660 mm
Net weight: 400 kg
Characteristics / Technical specifications
The iqiege® 2110D is a large upright metallographic cutting machine designed according to safety and environmental protection principles. It is intended for cutting specimens of metals, rocks, ceramics and other non-metallic materials to prepare samples for metallographic and petrographic microstructural analysis. The machine integrates cutting, cooling, illumination and cleaning systems and is suitable for laboratory specimen preparation.
II. Structure
The unit comprises a cutting system, cooling system, illumination system and cleaning/chip-removal system. The upper section is enclosed by a hinged protective guard with a large observation window and high-brightness lighting to monitor the cutting process. A manually operated swing-arm cutting lever (right side) facilitates handling of large workpieces. The grooved cast-iron workbench combined with a vise secures irregular parts. The coolant reservoir is located in the base and includes a filter screen for chip collection. Safety devices include a gantry-style safety switch and an explosion-proof guard.
III. Main Technical Specifications
Power supply: Three-phase 380V/50Hz
Cutting disc: Φ350×2.5×32 mm
Rotational speed: 2,300 rpm
Workbench dimensions: 400 mm × 320 mm
Maximum cutting diameter: Φ110 mm
Input power: 4.4 kW
Cutting motor power: 4 kW
External dimensions (W×D×H): 1050 mm × 1050 mm × 1660 mm
Net weight: 400 kg
Characteristics / Technical specifications
- Model: iqiege® 2110D
- Application: Cutting specimens of metals, rocks, ceramics and other non-metallic materials for metallographic and petrographic microstructural analysis
- Cutting disc size: Φ350×2.5×32 mm
- Maximum cutting diameter: Φ110 mm
- Rotational speed: 2,300 rpm
- Input power: 4.4 kW; Cutting motor power: 4 kW
- Workbench dimensions: 400 mm × 320 mm
- External dimensions (W×D×H): 1050 mm × 1050 mm × 1660 mm
- Net weight: 400 kg
- Frame: Cast-iron frame for stable support
- Safety: Gantry-style safety switch and explosion-proof guard
- Cooling & chip removal: Cooling reservoir with filter screen, magnetic separator and dedicated cutting fluid
- Operation: Manual swing-arm cutting mechanism with right-side cutting lever
- Observation & illumination: Large observation window with high-brightness lighting
- Workbench: Grooved cast-iron table with vise for irregular workpieces
