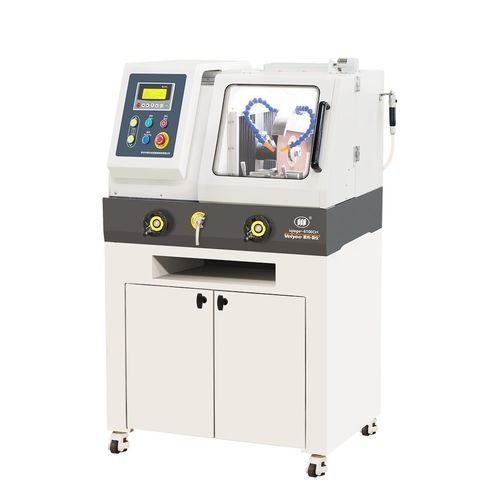

Blade cutting machine iqiege®6100DH

for ceramicsfor metalfor natural stone

Product Overview
The iqiege® 6100DH is an intelligent metallographic specimen cutting machine combining manual and automatic cutting modes for flexible operation. It processes metal, rock, ceramic and other metallic and non-metallic specimens for metallographic and petrographic microstructure analysis. The machine features a dedicated coolant system to remove cutting heat and prevent thermal damage. It supports three cutting modes, intelligent parameter settings and real-time motor load monitoring to avoid overload. The integrated manual–automatic mode offers the simplicity of manual operation with the repeatability of automatic cutting. Automatic feed rate is adjustable from 1 to 15 mm/min, suitable for routine specimen preparation in educational and industrial laboratories.

Product Advantages

• Sliding safety door with side-opening option provides full access to the cutting chamber for safe and easy loading/unloading.
• Patented safety lock prevents motor operation unless the guard is fully closed; the machine automatically stops if the guard is opened during cutting.
• Capability to cut long, linear workpieces exceeding the chamber width by removing the right-side guard, enabling longer and complex shapes within the machine's cutting capacity.
• Side-sliding chamber door reduces coolant spillage while maximizing working space and convenience.
• Open shelving for storage of cutting discs, wrenches and tools; doorless design enables quick access and improves workflow efficiency.

Detailed Specifications
Model: iqiege® 6100DH Automatic/Manual Cutting Machine
Power supply: 380V, 50Hz
Spindle speed (r/min): 2200
Cutting disc (mm): φ350×2.5×32
Maximum cutting capacity (mm): Φ100
Motor power (kW): 3
Spindle travel (mm): 145
Worktable travel (mm): 300
Worktable dimensions (mm): 330×280
External dimensions (mm): 960×855×1550
Coolant tank: Built-in
Net weight (kg): 296

Characteristics / Technical specifications

• Model: iqiege® 6100DH
• Cutting modes: Manual, Automatic, Integrated manual–automatic
• Automatic feed rate: adjustable 1–15 mm/min
• Spindle speed: 2200 r/min
• Cutting disc: φ350×2.5×32 mm
• Maximum cutting diameter/capacity: Φ100 mm
• Motor power: 3 kW
• Spindle travel: 145 mm
• Worktable travel: 300 mm; dimensions 330×280 mm
• Power supply: 380V, 50Hz
• Built-in coolant/water tank
• External dimensions: 960×855×1550 mm
• Net weight: 296 kg
