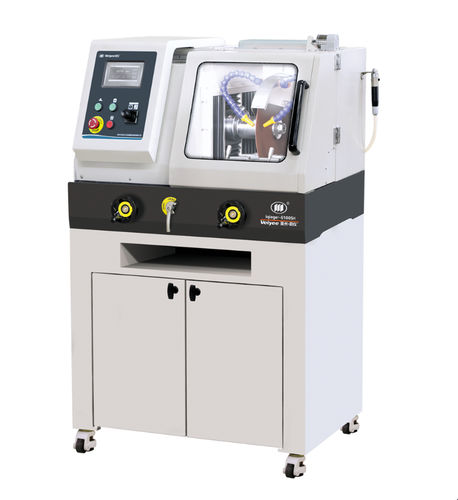

Blade cutting machine iqiege®6100SH

rotaryfor ceramicsfor metal

Product Overview
The iqiege® 6100SH is a metallographic sample cutting machine combining manual and automatic cutting functions for flexible laboratory and industrial sample preparation. It cuts metallic and non‑metallic materials (metals, rocks, ceramics) and includes a dedicated coolant system to remove cutting heat and prevent thermal damage. The unit supports three cutting modes, real‑time spindle height adaptive adjustment to compensate blade wear, joystick control for simultaneous worktable and spindle adjustment, and a combined manual–automatic operating mode. Real‑time spindle current monitoring protects against overload. Automatic feed rate is adjustable from 1–15 mm/min for stable, repeatable sample preparation.

Product Advantages

• Sliding safety door with side opening for full access to the cutting chamber and safe, ergonomic operation.
• Patented safety lock that prevents motor start unless the guard is fully closed; accidental opening triggers automatic shutdown.
• Removable right-side guard to accommodate long or continuous workpieces exceeding the chamber width.
• Side-sliding chamber door design minimises coolant leakage while maximising usable workspace.
• Open storage shelf for cutting discs, wrenches and tools to speed up operations and reduce downtime.

Detailed Specifications
Model: iqiege® 6100SH Automatic/Manual Cutting Machine
Power supply: 380 V, 50 Hz
Spindle speed: 2200 r/min
Operation: Touchscreen with joystick control
Cutting disc: φ350 × 2.5 × 32 mm
Maximum cutting capacity: Φ100 mm
Motor power: 3 kW
Spindle lift/stroke: 50 mm lift, 145 mm travel
Worktable travel: 300 mm
Worktable dimensions: 330 × 280 mm
External dimensions: 960 × 855 × 1550 mm
Water tank: Built-in
Weight: 296 kg

Features / Technical Specifications

• Suitable materials: metals, rocks, ceramics and other metallographic/non‑metallographic specimens.
• Dedicated coolant system to dissipate cutting heat and avoid specimen thermal damage.
• Three cutting modes: manual, automatic and hybrid (manual–automatic) to match various preparation needs.
• Real‑time spindle height adaptive adjustment for automatic blade‑wear compensation.
• Real‑time spindle current monitoring for overload protection.
• Touchscreen interface with joystick for intuitive combined worktable and spindle adjustment.
• Adjustable automatic feed rate: 1–15 mm/min for consistent sample cutting.
• Removable right-side guard for long-piece cutting and side-sliding door to reduce coolant spill.
• Open storage rack for discs and tools; compact footprint for laboratory and industrial environments.
