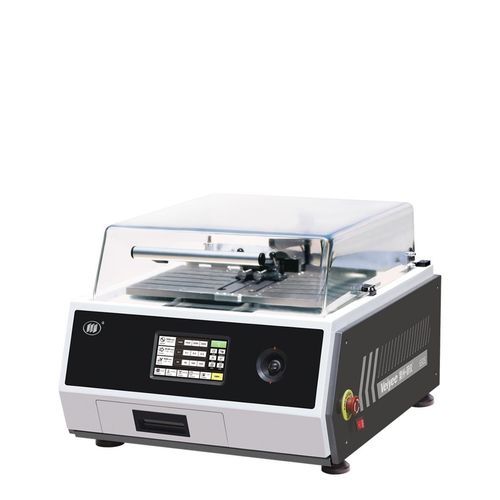

Blade cutting machine iqiege®650S

for ceramicsfor metalfor stone

Product Overview
The IQIEGE650S precision cutting machine is designed for precise, deformation-free cutting of a wide range of materials including metals, electronic components, ceramics, crystals, cemented carbides, rock and mineral samples, concrete, organic materials and biological specimens such as teeth and bone. The system features PLC control for high positioning accuracy, a wide speed range, strong cutting capability and an efficient recirculating cooling system. It supports presettable feed rates, a large 7-inch touchscreen for intuitive operation and monitoring, and automated cutting to reduce operator fatigue and ensure consistent sample preparation. Real-time monitoring and alarm notifications are provided throughout the cutting process, and the machine has a spacious, well-lit cutting chamber with safety interlocks.

Product Advantages

• 7-inch touchscreen with integrated manual/automatic control and support for eight languages.
• Backend supports multiple configurable recipes and quick switching of cutting parameters; frequently used parameters adjustable on the main screen and savable to recipes.
• Feed speed precisely adjustable from 0.01 to 5 mm/s (step 0.01) with three preset fixed-speed settings for quick selection.
• Cutting disc speed precisely adjustable from 500 to 5,000 rpm with three preset speed settings; settings can be saved to recipes.
• Laser tool setting enables rapid clamping and highly accurate positioning of specimens.
• One-key quick tool-setting to improve work efficiency.
• Supports wet and dry cutting with a concealed, efficient recirculating cooling system.
• Equipped with multiple fixtures to clamp irregularly shaped workpieces.
• Automatic/manual modes for flexible cutting operations.
• Four cutting modes (flat-push/parallel, pulse, intelligent, manual) and a servo motor system for reliable performance. Intelligent Cutting automatically adjusts speed according to load; pulse cutting suits materials prone to burning; manual mode uses a joystick for platform movement.

Cutting Modes

• Flat-push/Parallel cutting: platform advances automatically, suitable for easily cut products.
• Pulse cutting: suitable for materials prone to burning.
• Intelligent Cutting: automatically adjusts speed based on cutting load, suitable when optimal speed is uncertain.
• Manual mode: platform advanced via joystick, with maximum speed set by the configured feed rate.

Detailed Specifications
Feed rate: 0.01–5 mm/s (step: 0.01)
Saw blade speed: three-speed constant quick adjustment from 500 to 5,000 rpm
Maximum Y travel: 240 mm
Maximum blade passage height: 50 mm
Workbench dimensions: 270 mm × 465 mm (two pieces stacked side by side)
Worktable feed: joystick control, manual or automatic
T-slot size: 7 mm × 11 mm
Clamping limit - max height: 50 mm (clamping unstable above this)
Clamping limit - quick clamp (standard): Y-axis travel limit 130 mm (for flat parts)
Clamping limit - vertical fixture (standard): Y-axis travel limit 255 mm (for flat parts)
Cutting motor power: 1.2 kW
Cutting disc size: 200 × 32 × 1 mm
Tool setting: laser line marking and one-click worktable positioning
Operating modes: Parallel (flat-push), Pulse, Intelligent, Manual
Touchscreen: 7 inches (8 languages)
Power supply: 220 V, 50 Hz
External dimensions (L×W×H): 720 × 600 × 500 mm

Features / Technical specifications

• Model: IQIEGE650S
• Control: PLC with integrated manual/automatic control and recipe management
• Touchscreen: 7-inch, multi-language (8 languages)
• Feed range: 0.01–5 mm/s (step 0.01)
• Blade speed: 500–5,000 rpm (three quick-adjust presets)
• Platform Y travel: 240 mm
• Max blade passage height: 50 mm
• Workbench: 270 × 465 mm (two stacked)
• Motor power: 1.2 kW
• Cutting disc: 200 × 32 × 1 mm
• Power supply: 220 V, 50 Hz
• Overall dimensions (L×W×H): 720 × 600 × 500 mm
• Cooling: recirculating cooling system (supports wet and dry cutting)
• Tool setting: laser line marking + one-click positioning
• Modes: Flat-push/Parallel, Pulse, Intelligent (automatic adjustment), Manual (joystick)
