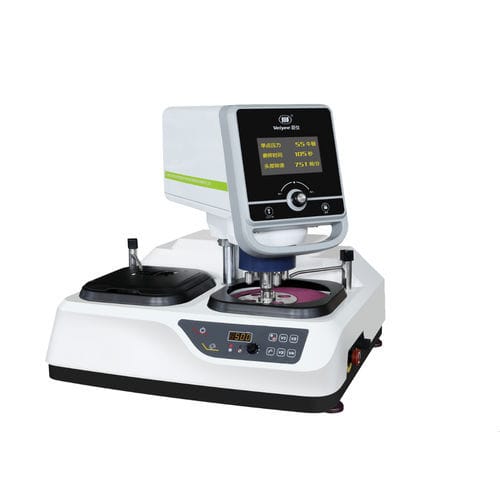

Aluminum grinding polishing machine MoPao®2S

stainless steelmetalmetallographic sample

Product name
Automatic Metallographic Grinding and Polishing Machine MoPao® 2S.

Overview
The MoPao® 2S is a dual‑platen benchtop automatic grinding and polishing machine designed for high‑precision metallographic sample preparation. It integrates a microprocessor control system with stepless speed regulation for both the grinding/polishing disc and the polishing head, and provides intuitive settings for load and process time. Quick replacement of discs, abrasive papers and polishing cloths enables rapid workflow changes and broad application versatility.

Main technical parameters
Grinding/polishing disc diameter: φ250 mm (optional φ203 mm)
Polishing pad speed: 50–1000 r/min, step 20 r/min; preset speeds: 150, 300, 600, 1000 r/min
Grinding/polishing head speed: 50–150 r/min (stepless)
Loading range: 5–60 N
Compressed air: 0.6–0.9 MPa
Sample preparation time: 0–995 s
Specimen diameter: φ30 mm (optional φ22 mm, φ45 mm or others)
Max samples per batch: 4
Work lighting: LED
Input voltage: single‑phase AC 220V 50Hz
Input power: 1.1 kW
External dimensions: 760 × 706 × 736 mm
Net weight: 128 kg
Gross weight: 152 kg

Consumables included

• Adhesive metallographic sandpaper — piece — 20 — 240#
• Adhesive metallographic sandpaper — piece — 20 — 400#
• Adhesive metallographic sandpaper — piece — 20 — 800#
• Adhesive metallographic sandpaper — piece — 20 — 1200#
• Silk velvet with adhesive backing — piece — 3
• Wool polishing cloth with adhesive — piece — 3
• Magnetic rubber pad — piece — 2
• Non‑stick tray — piece — 3
• Diamond suspension grinding/polishing fluid — bottle — 1 — W2.5 500 ml
• Diamond spray polishing agent — bottle — 1 — W2.5 350 ml

Applications
Supports automated workflows from rough grinding and fine grinding to coarse and fine polishing. Suitable for material analysis, quality control and research/teaching laboratories in industry and academia.

Features / specifications

• Dual‑platen benchtop design for efficient parallel or sequential sample processing.
• Microprocessor control with stepless speed regulation for disc and polishing head.
• Selectable disc rotation direction and quick‑change disc mounting.
• Multi‑sample holder with pneumatic single‑point loading; up to four samples per run.
• Optional automatic abrasive delivery (liquid dispenser available).
• Water‑cooling system and abrasive‑spray nozzles to prevent overheating and clear abrasive debris.
• ABS housing and stainless‑steel standard parts for corrosion resistance and easy cleaning.
• Cast‑aluminum base for improved rigidity and stability during grinding/polishing.
• Complete sample‑preparation workflow: rough grinding → fine grinding → coarse polishing → fine polishing.
