- Rotary blade cutting machine
- Laizhou Weiyi Experiment Machine Manufacturing Co., Ltd.

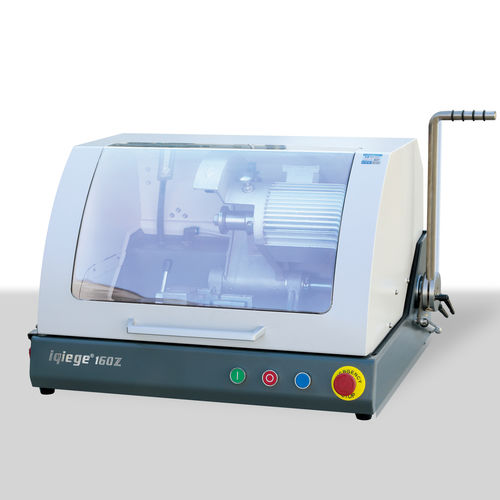

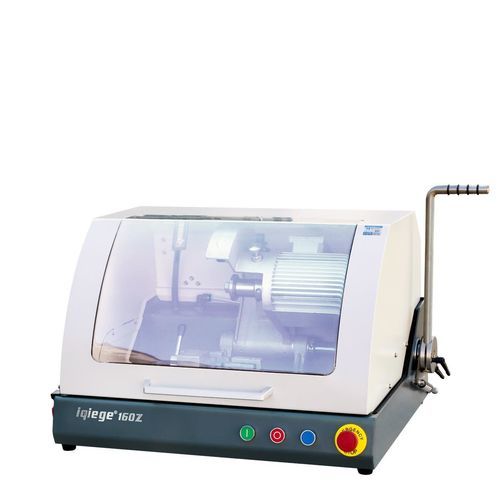

Rotary blade cutting machine iqiege® 160Zfor metalsamplegrinding
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- sample
- Associated function
- grinding
- Applications
- laboratory
- Phase
- three-phase
- Configuration
- bench-top
- Other characteristics
- with water cooling, manual
- Tube diameter
60 mm
(2 in)- Laser power
2,200 W, 2,400 W
- Overall length
760 mm
(30 in)- Maximum width
620 mm
(24 in)- Height
450 mm
(18 in)- Weight
82 kg
(180.78 lb)- Power supply
380 V
Description
Product overview
The iqiege® 160Z (formerly iqiege® 60S) is a basic metallographic specimen cutting machine for metallic and non‑metallic materials. It is designed to cut workpieces for metallographic and petrographic microstructural analysis. The unit includes a dedicated cooling system to remove cutting heat and protect specimen microstructure. The machine uses manual control (non‑CNC) and provides an economical, practical solution for routine specimen cutting in industrial plants, research institutes and university laboratories.
Main technical specifications
Power supply: Three‑phase four‑wire (380 V, 50 Hz)
Spindle speed: 2,800 rpm
Grinding wheel: 250×1.5×25.4 mm
Maximum cutting pass diameter: Φ60 mm
Input power: 2.4 kW
Cutting power: 2.2 kW
External dimensions: 760 × 620 × 450 mm
Weight: 82 kg
Features / technical details
The iqiege® 160Z (formerly iqiege® 60S) is a basic metallographic specimen cutting machine for metallic and non‑metallic materials. It is designed to cut workpieces for metallographic and petrographic microstructural analysis. The unit includes a dedicated cooling system to remove cutting heat and protect specimen microstructure. The machine uses manual control (non‑CNC) and provides an economical, practical solution for routine specimen cutting in industrial plants, research institutes and university laboratories.
Main technical specifications
Power supply: Three‑phase four‑wire (380 V, 50 Hz)
Spindle speed: 2,800 rpm
Grinding wheel: 250×1.5×25.4 mm
Maximum cutting pass diameter: Φ60 mm
Input power: 2.4 kW
Cutting power: 2.2 kW
External dimensions: 760 × 620 × 450 mm
Weight: 82 kg
Features / technical details
- Model: iqiege® 160Z (formerly iqiege® 60S)
- Applications: cutting and preparation of metallographic and petrographic specimens from metallic and non‑metallic materials
- Cooling system: dedicated coolant circuit to dissipate cutting heat and protect specimen microstructure
- Control: manual operation (not CNC)
- Power supply: Three‑phase four‑wire (380 V, 50 Hz)
- Spindle speed: 2,800 rpm
- Grinding wheel specification: 250×1.5×25.4 mm
- Maximum cutting pass diameter: Φ60 mm
- Input power: 2.4 kW; cutting power: 2.2 kW
- Dimensions (L×W×H): 760 × 620 × 450 mm
- Weight: 82 kg
- Notes: manual basic design intended for routine specimen cutting in laboratory and industrial environments
