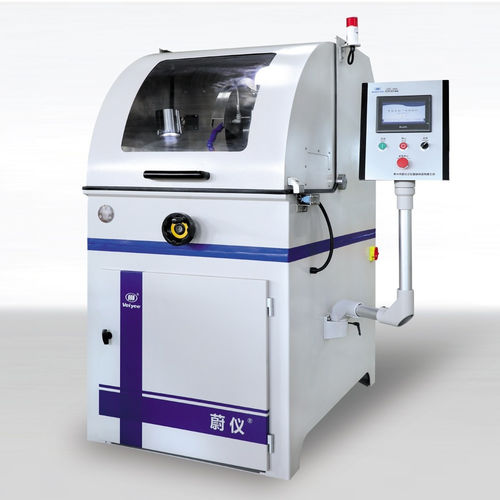

Metallographic cutting machine iqiege ®-7110Drotary bladefor metaltube
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- tube
- Control type
- numerical control
- Applications
- metallographic
- Other characteristics
- automatic, high-precision, precision, manual
- Y travel
240 mm
(9.45 in)- Maximum cutting height
110 mm
(4.3 in)- Cutting speed
Max.: 0.5 mm/s
Min.: 0.03 mm/s
- Weight
500 kg
(1,102.31 lb)
Description

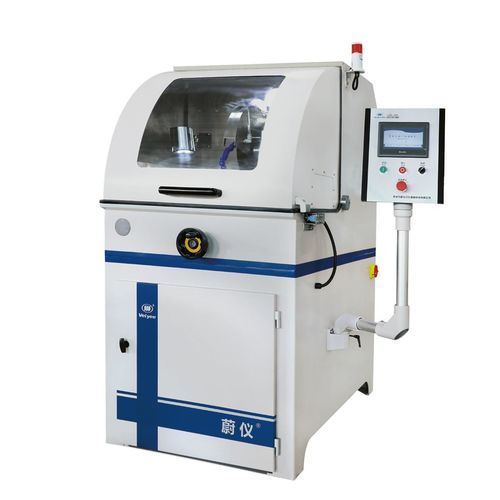

Product overview The IQIEGE 7110D (formerly LDQ-350A) is a vertical metallographic cutting machine designed for laboratory and industrial sample preparation. It integrates cutting, cooling, illumination and cleaning systems and is intended for cutting a wide range of materials including metals, rocks and ceramics. The unit is engineered for stable operation, low noise and safe handling. The CNC-controlled automatic cutting provides precise feed-speed and stroke management to ensure reproducible specimen preparation and improve analysis quality.
Key features
Main Technical Specifications (table) Cutting method: chopping deceleration, pushing deceleration, chopping pulse, pushing pulse
Maximum Y-axis travel: 240 mm
Y-axis cutting speed: 0.03–0.5 mm/s
Z-axis cutting speed: 0.03–0.5 mm/s
Maximum cutting diameter: Φ110 mm
Maximum travel: Z-axis 150 mm; Y-axis 240 mm; X-axis 70 mm (optional)
Rotational speed: 2,300 rpm
Spray-type cleaning function: yes (spray cleaning)
Cutting power: 5 kW
Power supply: Three-phase 380V/50Hz
External dimensions: 1710 × 1420 × 1810 mm
Net weight: 500 kg
Characteristics / technical specifications
Key features
- CNC-controlled automatic cutting for precise feed-speed and stroke control
- Integrated cutting, cooling, illumination and cleaning systems
- Supports multiple cutting modes: chopping/pushing with deceleration and pulse options
- Comprehensive safety protections including gantry-style switch and explosion-proof guard
- Efficient cooling and chip-removal system to maintain sample and blade integrity
Main Technical Specifications (table) Cutting method: chopping deceleration, pushing deceleration, chopping pulse, pushing pulse
Maximum Y-axis travel: 240 mm
Y-axis cutting speed: 0.03–0.5 mm/s
Z-axis cutting speed: 0.03–0.5 mm/s
Maximum cutting diameter: Φ110 mm
Maximum travel: Z-axis 150 mm; Y-axis 240 mm; X-axis 70 mm (optional)
Rotational speed: 2,300 rpm
Spray-type cleaning function: yes (spray cleaning)
Cutting power: 5 kW
Power supply: Three-phase 380V/50Hz
External dimensions: 1710 × 1420 × 1810 mm
Net weight: 500 kg
Characteristics / technical specifications
- Model: IQIEGE 7110D (formerly LDQ-350A)
- Applicable samples: metals, rocks, ceramics and similar materials
- Cutting methods: chopping deceleration / pushing deceleration / chopping pulse / pushing pulse
- Y-axis max travel: 240 mm; Z-axis travel: 150 mm; X-axis travel: 70 mm (optional)
- Cutting speeds (Y/Z): 0.03–0.5 mm/s
- Maximum cutting diameter: Φ110 mm
- Spindle speed: 2,300 rpm
- Cutting power: 5 kW; Power supply: 3-phase 380 V / 50 Hz
- Dimensions (L×W×H): 1710 × 1420 × 1810 mm; Net weight: 500 kg
