- Rotary blade cutting machine
- Laizhou Weiyi Experiment Machine Manufacturing Co., Ltd.

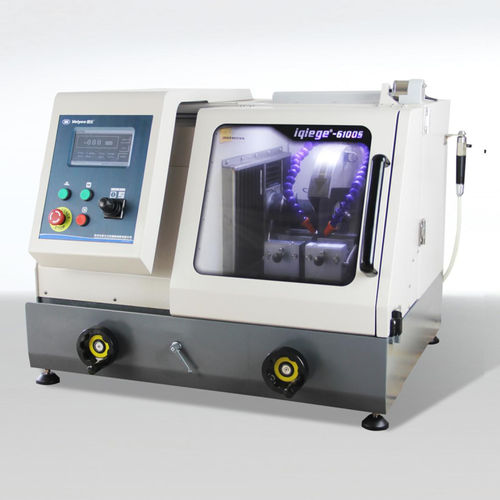

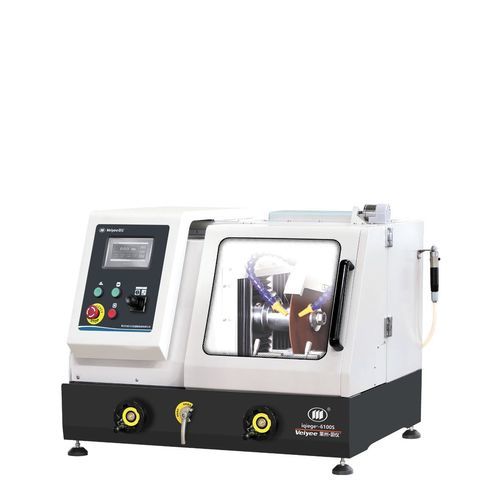

Rotary blade cutting machine iqiege®6100Sfor ceramicsfor metalfor natural stone
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal, for natural stone, for ceramics
- Product handled
- sample
- Control type
- PLC-controlled
- Applications
- for industrial applications, metallographic, laboratory
- Workpiece loading
- manual loading
- Phase
- three-phase
- Configuration
- bench-top, 2-axis
- Other characteristics
- automatic, with water cooling, with automatic feeder, manual, combined, electrically-powered
- Y travel
300 mm
(11.81 in)- Z travel
145 mm
(6 in)- Maximum cutting height
100 mm
(3.9 in)- Minimum cutting height
50 mm
(1.97 in)- Overall length
900 mm
(35 in)- Maximum width
330 mm
(13 in)- Height
620 mm
(24 in)- Weight
285 kg
(628.32 lb)- Power supply
380 V
Description
Product overview
The iqiege 6100S is an integrated manual and automatic metallographic sample cutting machine designed for flexible, precise preparation of metallic and non‑metallic specimens (metals, rocks, ceramics). The unit features a dedicated coolant system to evacuate cutting heat, a large-capacity cutting chamber, three cutting modes, and joystick control for spindle elevation and table movement. Automatic feed is adjustable between 1 and 15 mm/min; real‑time spindle current monitoring and intelligent load protection reduce the risk of overload.
Key features
Main technical parameters
Model: iqiege 6100S
Power supply: 380V, 50Hz
Lighting: LED ceiling light
Noise: ≤85 dB
Cooling water tank capacity: 60 L
Spindle speed (r/min): 2800
Cutting disc specifications (mm): φ350×2.5×32
Maximum cutting capacity (mm): Φ100
Removable baffle: Yes
Motor power (kW): 3
Spindle travel (mm): 145
Worktable travel (mm): 300
Spindle lifting stroke (mm): adjustable to 50
Worktable dimensions (mm): 330×280
External dimensions (mm): 900×860×620
Weight (kg): 285
Applications
Specifications / features
The iqiege 6100S is an integrated manual and automatic metallographic sample cutting machine designed for flexible, precise preparation of metallic and non‑metallic specimens (metals, rocks, ceramics). The unit features a dedicated coolant system to evacuate cutting heat, a large-capacity cutting chamber, three cutting modes, and joystick control for spindle elevation and table movement. Automatic feed is adjustable between 1 and 15 mm/min; real‑time spindle current monitoring and intelligent load protection reduce the risk of overload.
Key features
- Combined manual and automatic cutting modes for flexible use
- Suitable for metallic and non‑metallic samples: metals, rocks, ceramics
- Dedicated coolant system to prevent thermal damage
- Large-capacity cutting chamber
- Three cutting modes and joystick control for spindle/table movement
- Intelligent load protection with real‑time spindle current monitoring
- Automatic feed adjustable from 1 to 15 mm/min
Main technical parameters
Model: iqiege 6100S
Power supply: 380V, 50Hz
Lighting: LED ceiling light
Noise: ≤85 dB
Cooling water tank capacity: 60 L
Spindle speed (r/min): 2800
Cutting disc specifications (mm): φ350×2.5×32
Maximum cutting capacity (mm): Φ100
Removable baffle: Yes
Motor power (kW): 3
Spindle travel (mm): 145
Worktable travel (mm): 300
Spindle lifting stroke (mm): adjustable to 50
Worktable dimensions (mm): 330×280
External dimensions (mm): 900×860×620
Weight (kg): 285
Applications
- Preparation of metallographic specimens for microstructure analysis
- Petrographic sample cutting (rock samples)
- Use in universities, colleges and industrial laboratories
Specifications / features
- Model: iqiege 6100S (manual/automatic metallographic cutting machine)
- Power supply & motor: 380V, 50Hz; 3 kW
- Spindle speed & cutting disc: 2800 r/min; φ350×2.5×32 mm
- Maximum cutting capacity: Φ100 mm
- Automatic feed: 1–15 mm/min
- Spindle travel: 145 mm; spindle lifting stroke: adjustable to 50 mm; worktable travel: 300 mm
- Worktable size: 330×280 mm; cooling tank: 60 L
- Noise ≤85 dB; LED lighting; removable baffle for maintenance
- Real‑time spindle current monitoring and intelligent load protection
