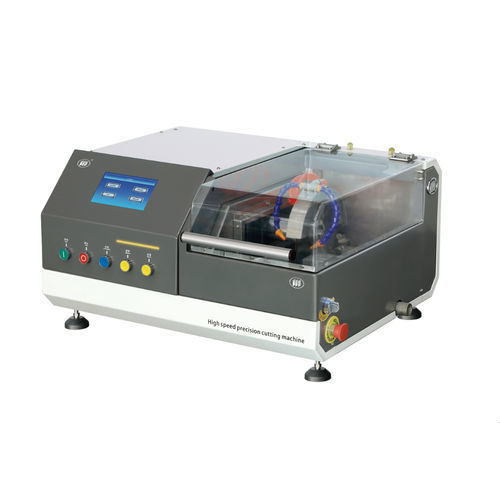

Rotary blade cutting machine GTQ-5000B

for ceramicsfor metalfor plastics

Product Overview
The GTQ-5000B precision cutting machine is designed for deformation-free, high-accuracy cutting of a wide range of materials including metals, electronic components, ceramics, crystals, cemented carbides, rock and mineral samples, concrete, organic materials and biological specimens (teeth, bone). The unit is driven by a high-power servo motor with PLC control, offers a wide speed range and programmable feed rates, and includes an integrated recirculating cooling system and a sealed, well-lit cutting chamber with safety interlocks for operator protection.

Key Functions and Features

• Precise, deformation-free cutting across diverse materials and specimen types.
• High-power servo motor with PLC control for precise positioning.
• Wide blade speed range (500–5000 rpm) and adjustable feed rate (0.01–3.00 mm/s).
• Built-in recirculating cooling to maintain sample integrity during cutting.
• Menu-based control with large touchscreen/LCD and programmable feed profiles.
• Automated cutting sequences with real-time monitoring and alarm alerts.
• Sealed cutting chamber with integrated lighting and safety interlock.

Detailed Specifications
GTQ-5000B High-Speed Precision Cutting Machine

• Model: GTQ-5000B
• Motor / Control: High-power servo motor with PLC control
• Feed rate: 0.01–3.00 mm/s (adjustment step: 0.01)
• Blade speed: 500–5000 rpm
• Maximum travel (Y-axis): 200 mm
• Cutting disc size: 200 × 1 × 32 mm
• Cutting power: 1000 W
• Power supply: 220 V, 50 Hz
• Cooling: Built-in recirculating cooling system
• Chamber: Sealed cutting chamber with safety interlock and integrated lighting
• Interface: Menu-based control with large touchscreen/LCD; programmable presets
• Monitoring: Real-time process monitoring and alarm alerts
• Dimensions (L×W×H): 750 × 630 × 400 mm

Applications
Suitable for industrial manufacturers, mining and geological labs, materials testing and research institutes for preparation of consistent, deformation-free test specimens from metals, ceramics, minerals, concrete, polymers and biological samples.
