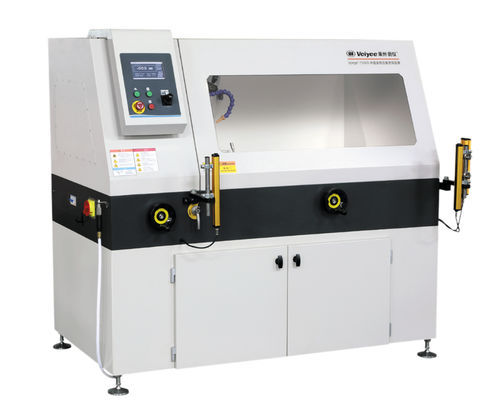

Laser cutting machine iqiege®7100D

for ceramicsfor composite materialsfor metal

Product Overview The iqiege®7100D is a professional large-scale metallographic sample cutting machine designed for oversized specimens. It is intended for cutting metals, ceramics, composite materials and petrographic samples. The machine features an extra-large cutting chamber with a maximum cutting length of 1200 mm, enabling processing of long-length workpieces such as battery-case materials. It supports manual and automatic operation modes, offers three cutting methods with pulse-cutting and real-time spindle-height adjustment, and is powered by a 3 kW motor with a spindle speed of 2800 r/min. Integrated safety systems include safety light curtains, electric doors and multiple alarm prompts.

Technical Parameters Power supply: 380V, 50Hz
Spindle speed: 2800 r/min
Grinding wheel specification: 350x2.5x32
Maximum cutting capacity (new disc): Length 1200 x Height 110 x Width 200 mm
Maximum automatic cutting travel: 300 mm
Maximum table travel: 200 mm
Z-axis travel: 120 mm
Motor power: 3 kW
Workbench dimensions: 1128 x 380 mm
External dimensions: 1770 x 1250 x 1640 mm

Features

• Operation modes: manual and automatic
• Cutting methods: three options including pulse-cutting and real-time spindle-height adjustment
• Large cutting chamber: extended cutting length up to 1200 mm for long workpieces
• Power and speed: 3 kW motor, 2800 r/min
• Suitable materials: metals, ceramics, composite materials, petrographic specimens, battery-case materials
• Safety: safety light curtains, electric doors, multiple alarm prompts

Specifications

• Model: iqiege®7100D
• Brand: IQIEGE
• Power supply: 380V, 50Hz
• Spindle speed: 2800 r/min
• Grinding wheel: 350 x 2.5 x 32
• Max cutting capacity: Length 1200 x Height 110 x Width 200 mm
• Max automatic cutting travel: 300 mm
• Max table travel: 200 mm
• Z-axis travel: 120 mm
• Motor power: 3 kW
• Workbench dimensions: 1128 x 380 mm
• External dimensions: 1770 x 1250 x 1640 mm
• Operation modes: Manual and automatic
• Cutting methods: Three methods; pulse-cutting
• Applications: Metals, ceramics, composite materials, petrographic specimens, battery-case materials
• Safety: Safety light curtains, electric doors, multiple alarm prompts
