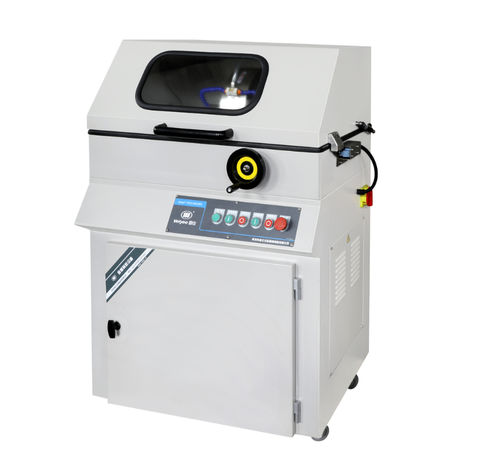

Rotary blade cutting machine iqiege® 265Zfor metalsamplelaboratory
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- sample
- Applications
- metallographic, laboratory
- Workpiece loading
- manual loading
- Phase
- three-phase
- Other characteristics
- mechanical
- Tube diameter
65 mm
(3 in)- Laser power
1,600 W
- Overall length
870 mm
(34 in)- Maximum width
550 mm
(22 in)- Height
1,120 mm
(44 in)- Weight
230 kg
(507.06 lb)
Description
Summary
This machine is designed for cutting standard metallographic specimens to facilitate observation of metallographic and petrographic microstructures. It features a fully enclosed double-shield housing for safe operation and is equipped with a powerful cooling system that, when used with an appropriate coolant, dissipates heat generated during cutting to prevent overheating and thermal damage to the specimen's microstructure. The equipment is user-friendly, safe, and reliable for specimen preparation in industrial and research laboratory environments.
Product Introduction
I. Overview
This machine is suitable for cutting standard metallographic specimens to facilitate observation of their metallographic and petrographic microstructures. It features a fully enclosed double-shield design, ensuring safe operation during specimen cutting. The machine is equipped with a powerful cooling system; when used with an appropriately formulated coolant, it effectively dissipates the heat generated during cutting, thereby preventing overheating and thermal damage to the specimen’s microstructure. Convenient to operate, safe, and reliable, this equipment is an essential tool for specimen preparation in industrial settings and research laboratory environments.
II. Main Technical Specifications
Maximum cutting diameter : Φ65mm
Rotational speed : 2,800 rpm
Grinding Wheel Specifications : Φ250×2×32mm
Power supply : 380V/50Hz
Input Power : 1.6KW
External dimensions : 870mm × 550mm × 1120mm
Weight : 230Kg
Features / Technical specifications
This machine is designed for cutting standard metallographic specimens to facilitate observation of metallographic and petrographic microstructures. It features a fully enclosed double-shield housing for safe operation and is equipped with a powerful cooling system that, when used with an appropriate coolant, dissipates heat generated during cutting to prevent overheating and thermal damage to the specimen's microstructure. The equipment is user-friendly, safe, and reliable for specimen preparation in industrial and research laboratory environments.
Product Introduction
I. Overview
This machine is suitable for cutting standard metallographic specimens to facilitate observation of their metallographic and petrographic microstructures. It features a fully enclosed double-shield design, ensuring safe operation during specimen cutting. The machine is equipped with a powerful cooling system; when used with an appropriately formulated coolant, it effectively dissipates the heat generated during cutting, thereby preventing overheating and thermal damage to the specimen’s microstructure. Convenient to operate, safe, and reliable, this equipment is an essential tool for specimen preparation in industrial settings and research laboratory environments.
II. Main Technical Specifications
Maximum cutting diameter : Φ65mm
Rotational speed : 2,800 rpm
Grinding Wheel Specifications : Φ250×2×32mm
Power supply : 380V/50Hz
Input Power : 1.6KW
External dimensions : 870mm × 550mm × 1120mm
Weight : 230Kg
Features / Technical specifications
- Model designation: iqiege® 265Z
- Designed for cutting standard metallographic and petrographic specimens
- Fully enclosed double-shield housing for enhanced operator safety
- Effective cooling system to dissipate cutting heat and protect specimen microstructure
- Maximum cutting diameter: Φ65 mm
- Spindle rotational speed: 2,800 rpm
- Recommended grinding wheel: Φ250×2×32 mm
- Electrical supply: 380V / 50Hz
- Motor input power: 1.6 kW
- Overall external dimensions: 870 mm × 550 mm × 1120 mm
- Net weight: 230 kg
