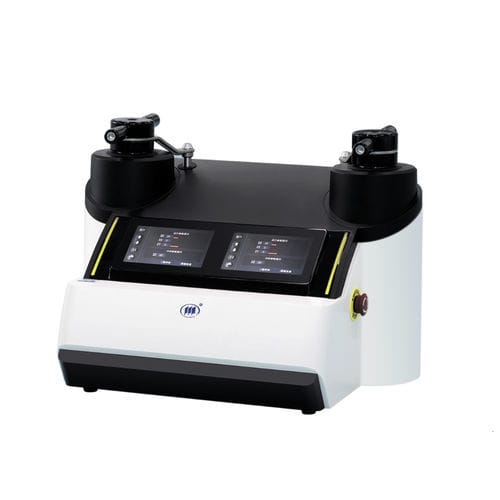

Hot mounting press ixiang®5S

electro-hydraulicautomaticfor metallographic samples

Overview
Mounting small, hard-to-handle or irregular metallographic and petrographic specimens provides a stable, flat sample for subsequent grinding, polishing, microscopic observation and hardness testing. The ixiang®-5S automates hot-press inlay preparation to reduce cycle time and improve repeatability.

Equipment Characteristics

• Integrated heating and cooling unit reduces mounting cycle to approximately 6 minutes to increase throughput.
• Cyclic jog-pressure control maintains and controls pressure during mounting to improve specimen quality and hardness consistency.
• Pressure-retention circuit expels residual air from the compound to prevent bubble formation and ensure uniform specimen texture.
• Safety fixture prevents the upper cover from springing open during sample removal to reduce risk of injury.
• Programmable control with 10 user-definable programs to accommodate diverse mounting procedures.
• ABS housing with refined finish for improved ergonomics and serviceability.
• 15 mm intermediate mold allows simultaneous mounting of two samples at a single station.
• Precise pressure adjustment from 1 to 20 MPa to suit various thermosetting mounting compounds.
• Large-size touchscreen for clear display and intuitive operation.

Main Technical Parameters
Operation mode: Hot-press, automatic electric hydraulic
Inlay mold dimensions: Imperial: 1, 1.25, 1.5, 2 in; Metric: 25, 30, 40, 50 mm
Pressure range: 1–20 MPa (200–4,000 kgf), step 1 MPa
Heating temperature: 90℃–200℃ (selectable)
Heating power: 4,300 W (for 1 in, 1.25 in / 25, 30 mm) or 5,500 W (for 1.5 in, 2 in / 40, 50 mm)
Cooling: Temperature cooling 40℃–90℃ (1℃ steps); time cooldown 0–10 min (1-min steps)
Work environment: Temperature 5℃–40℃; humidity 30%–90% non-condensing
Power supply: 220 V, 50 Hz, single-phase (110 V optional)
Water inlet: 3/4 standard inlet
Water outlet: Φ10 rubber hose
External dimensions: 671 × 485 × 463 mm

Features / Specifications

• Model: ixiang®-5S
• Operation: Automatic hot-press, electric hydraulic
• Pressure range: 1–20 MPa, step 1 MPa
• Heating range: 90℃–200℃
• Heating power: 4,300 W or 5,500 W (depending on mold size)
• Cooling modes: Temperature or time-controlled cooldown
• Mold compatibility: Metric 25/30/40/50 mm and imperial 1/1.25/1.5/2 in; 15 mm intermediate mold for two samples
• Control: Programmable with 10 user programs; large touchscreen
• Dimensions: 671 × 485 × 463 mm; Power: 220 V/50 Hz (110 V optional)
