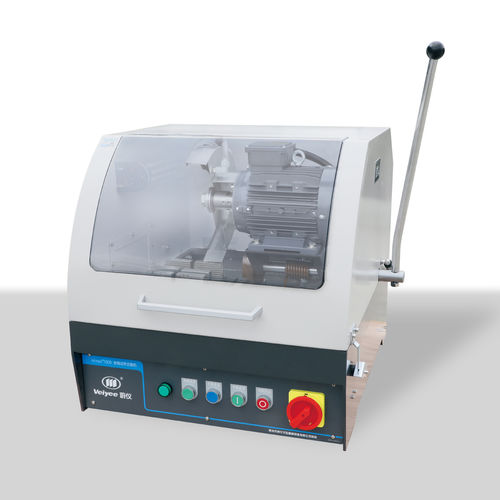

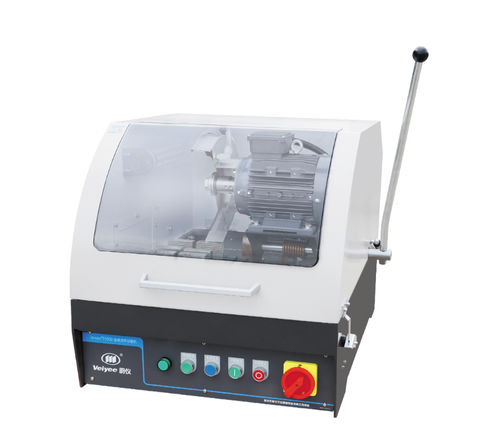

Rotary blade cutting machine iqiege®180Dfor metalsamplelaboratory
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- sample
- Applications
- for industrial applications, laboratory
- Workpiece loading
- manual loading
- Phase
- three-phase
- Other characteristics
- with water cooling, manual, electrically-powered
- Maximum cutting height
80 mm
(3.1 in)- Laser power
3,000 W
- Overall length
690 mm
(27 in)- Maximum width
790 mm
(31 in)- Height
670 mm
(26 in)- Power supply
380 V
Description
Product overview
The IQIEGE 180D is a basic metallographic sample-preparation cutting machine for metallic and non-metallic specimens, intended to produce samples suitable for metallographic and petrographic microstructural observation. It features a dedicated coolant system with active cooling protection to dissipate heat during cutting, preventing overheating and thermal damage to the specimen and preserving microstructure integrity. The unit has a robust construction, stable performance, manual control and clear maintenance guidelines, powered by a 3.0 kW motor and capable of cutting up to φ80 mm. It is suitable for routine sampling in industrial plants, research institutes and university laboratories.
Main technical specifications
Power supply: 380V, 50Hz
Spindle speed (r/min): 2800
Cutting disc specification (mm): 250×2×32
Maximum cutting capacity (mm): φ80
Electric motor power (kW): 3.0
External dimensions (mm): 690×790×670
Characteristics / Technical specifications
The IQIEGE 180D is a basic metallographic sample-preparation cutting machine for metallic and non-metallic specimens, intended to produce samples suitable for metallographic and petrographic microstructural observation. It features a dedicated coolant system with active cooling protection to dissipate heat during cutting, preventing overheating and thermal damage to the specimen and preserving microstructure integrity. The unit has a robust construction, stable performance, manual control and clear maintenance guidelines, powered by a 3.0 kW motor and capable of cutting up to φ80 mm. It is suitable for routine sampling in industrial plants, research institutes and university laboratories.
Main technical specifications
Power supply: 380V, 50Hz
Spindle speed (r/min): 2800
Cutting disc specification (mm): 250×2×32
Maximum cutting capacity (mm): φ80
Electric motor power (kW): 3.0
External dimensions (mm): 690×790×670
Characteristics / Technical specifications
- Model designation: IQIEGE 180D
- Application: Metallographic sample cutting for metallic and non-metallic specimens
- Cooling: Dedicated coolant system with active cooling protection to remove cutting heat and prevent specimen overheating
- Operation: Manual control, simple operation
- Motor power: 3.0 kW
- Maximum cutting diameter: φ80 mm
- Spindle speed: 2800 r/min
- Cutting disc specification: 250×2×32 mm
- Power supply requirement: 380V, 50Hz
- External dimensions: 690×790×670 mm
- Construction: Robust design for stable performance and safety
- Suitable for: Industrial plants, research institutions, university laboratories
