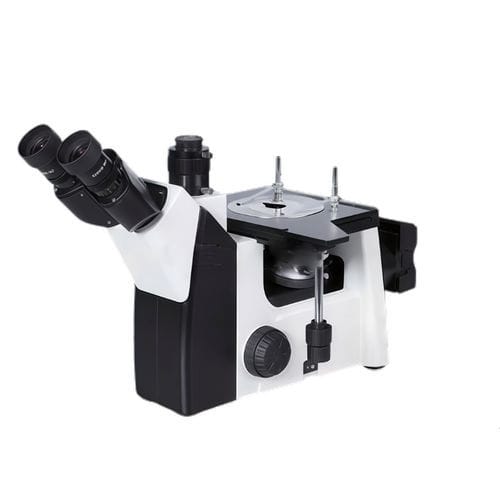

Metallographic microscope WY-C

for researchmetallurgicalfor teaching

Product Introduction
The WY-C is an inverted metallurgical microscope equipped with professional long-working-distance metallurgical objectives and plan-eyepieces, providing high-resolution, high-contrast imaging and comfortable observation. The WY-C combines stable mechanical design with superior imaging performance. When fitted with photography and video accessories, it supports image capture and storage and can be integrated with a PC and professional metallographic analysis software for detailed image analysis. It is easy to operate and supplied with a comprehensive set of accessories, suitable for teaching, research, semiconductor wafer inspection, mineralogical analysis and precision engineering measurement.

Technical Specifications
Optical system: finite-object-distance chromatic aberration correction system
Observation tube: hinged trinocular head, 45° inclined, bilateral ±5 diopter adjustment; interpupillary distance 54–75 mm; fixed beam-splitting ratio binocular:trinocular 80%:20%
Eyepieces: high-eyepoint wide-field plan-achromatic eyepiece PL10X/18mm; WF15X/13; WF20X/10mm
Metallographic objectives: long-working-distance plan-apochromatic objectives: 5×, 10×, 20×, 50×, 100×
Converter: internal-positioning four-hole and five-hole converters
Focusing mechanism: low-position coaxial coarse–fine focusing; coarse travel 38 mm per revolution; fine adjustment accuracy 2 µm; tension-adjustment mechanism
Stage: three-stage mechanical translation stage; platform 180 × 155 mm; travel 75 × 40 mm; metal stage plate with central hole φ12 mm; right- and left-hand operation
Lighting system: reflective Köhler illumination with variable aperture diaphragm and center-adjustable field diaphragm; wide voltage 90–240V; standard 6V 30W halogen lamp (optional single 3W LED); continuously adjustable intensity
Polarization device: removable polarizer and analyzer; analyzer holder rotatable 360°
Photographic installation: photographic extension tube with PK mount; 3.2× photographic eyepiece
Imaging device: 0.5X/1.0X C-mount camera adapter tube
Software: professional metallographic analysis software

Features / Technical data

• Professional metallographic objectives and plan eyepieces for high resolution and superior image quality
• Inverted metallographic configuration with robust mechanical design and easy operation
• Hinged 45° trinocular head with ±5 diopter adjustment and interpupillary range 54–75 mm
• Multiple high-eyepoint wide-field eyepieces available (PL10X/18mm, WF15X/13, WF20X/10mm)
• Long-working-distance plan-apochromatic objectives covering 5×–100×
• Internal-positioning 4-hole and 5-hole converters for fast, repeatable objective switching
• Coaxial low-position coarse–fine focusing, 38 mm coarse travel per revolution, 2 µm fine accuracy, adjustable tension
• Three-stage mechanical translation stage, travel 75 × 40 mm, platform 180 × 155 mm, central hole φ12 mm
• Reflective Köhler illumination, support for 90–240V, standard 6V30W halogen or optional 3W LED, continuously adjustable light intensity
• Removable polarization components; analyzer holder with 360° rotation
• Supports photography and imaging accessories (PK mount extension, 3.2× photo eyepiece, 0.5X/1.0X C-mount)
• Includes professional metallographic analysis software for image capture, storage and analysis
