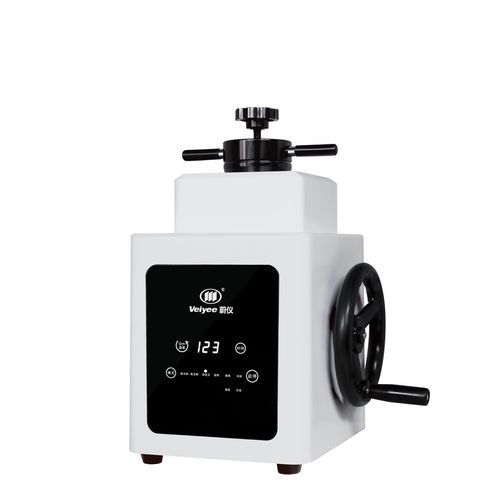

Hot mounting press XQ-2B

automaticfor metallographic sampleslaboratory

Short description The XQ-2B metallographic specimen mounting machine is designed for mounting small, hard-to-handle or irregular metallographic and petrographic specimens to facilitate subsequent cutting, grinding and polishing prior to metallographic analysis, spectroscopic examination or hardness testing. Programmable control supports three mounting modes (bakelite powder, electroceramic powder and user-defined) and precise timing for unattended operation. Ideal for university laboratories and industrial/mining quality control.

Product Introduction
I. Overview: The XQ-2B provides a controlled mounting process for delicate or irregular samples, improving preparation consistency for downstream metallographic workflows. The unit features programmable operation with three selectable modes—standard bakelite powder, electroceramic powder and a user-defined program—allowing adaptation to different sample types and materials. The automated timing control permits unattended cycles, increasing throughput in routine laboratory tasks.

II. Main Technical Parameters
Specimen pressing diameter: φ22, φ30, φ45 (three specifications; one selected as standard at order).
Temperature control range: Room temperature to 200°C
Timing range: 0–890 s
Total machine power: ≤ 800 W
Input power: Single-phase AC 220 V, 50 Hz
External dimensions: 440 mm × 253 mm × 310 mm
Net weight: 32 kg

Characteristics / Technical specifications

• Model: XQ-2B
• Specimen pressing diameter: φ22 / φ30 / φ45 (select one)
• Temperature control range: Room temperature to 200°C
• Timing range: 0–890 s
• Total machine power: ≤ 800 W
• Input power: Single-phase AC 220 V, 50 Hz
• External dimensions: 440 × 253 × 310 mm
• Net weight: 32 kg
• Operating modes: Bakelite powder / Electroceramic powder / User-defined
• Applications: Metallographic sample preparation for educational, industrial and mining laboratories
