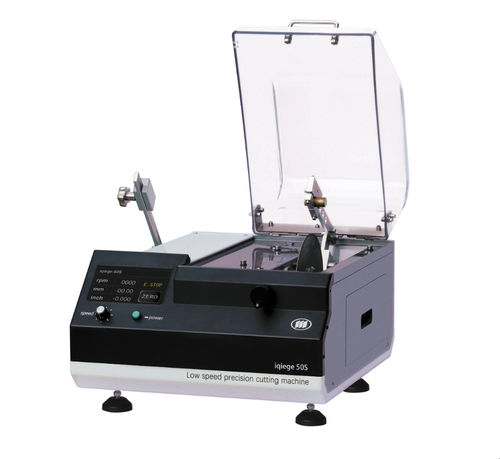

Rotary blade cutting machine iqiege®50S

disclaboratorymanual loading

Overview
The iqiege®50S low-speed precision cutting machine uses brushless DC motor control technology, providing a compact structure, reliable operation and strong anti-interference performance. It is designed for precise cutting of various materials, particularly high-value brittle synthetic crystals. The machine is supplied with one standard single-clamp fixture and five specialized fixtures for optimal angular positioning. A limit switch enables unattended operation; the spindle offers high rotational accuracy, a wide speed range and fine horizontal feed adjustment. An optional cutting platform is available for push-type cutting.

Main Technical Parameters
Maximum cutting capacity: Ø50 mm
Spindle speed: 150–2,000 rpm (stepless)
Rated torque: 5.8 N·m
Spindle cutting power: 0.12 kW
X-axis traverse accuracy: 0.01 mm
X-axis traverse travel: 40 mm
Cutting disc: OD 127–177 mm (max 200 mm); ID 12.7 or 25.4 mm; saw blade collet diameter: 50 mm
Cutting pressure: Lever load 0–700 g
Cutting method: Cutting-by-impact with automatic stop protection at cut completion
Water tank capacity: 1 L
Power supply: 220V (110V optional)
Dimensions: 595 × 630 × 535 mm
Net weight: 45 kg
Optional accessories: Cutting platform

Fixture Schematic Diagram
A fixture schematic diagram is provided on the product page for reference, showing the standard single-clamp and the five specialized fixtures used for different workpiece orientations.

Features / Technical Specifications

• Drive and control: Brushless DC motor control for stable low-speed precision cutting.
• Application: Suitable for precise cutting of various materials, especially brittle synthetic crystals.
• Fixture configuration: One standard single-clamp plus five specialized fixtures for accurate angular positioning.
• Automation: Limit switch supports unattended cutting; automatic shutdown after cut completion.
• Spindle performance: High rotational accuracy, stepless speed regulation (150–2,000 rpm) and fine horizontal feed adjustment.
• Cutting disc compatibility: OD 127–177 mm (max 200 mm); ID 12.7 or 25.4 mm; collet Ø50 mm.
• Feed and pressure: X-axis travel 40 mm with 0.01 mm accuracy; cutting pressure lever load 0–700 g.
• Structure and dimensions: 595 × 630 × 535 mm, net weight 45 kg; water tank 1 L.
• Power options: Standard 220V (110V on request).
• Optional accessory: Cutting platform for push-type cutting.
