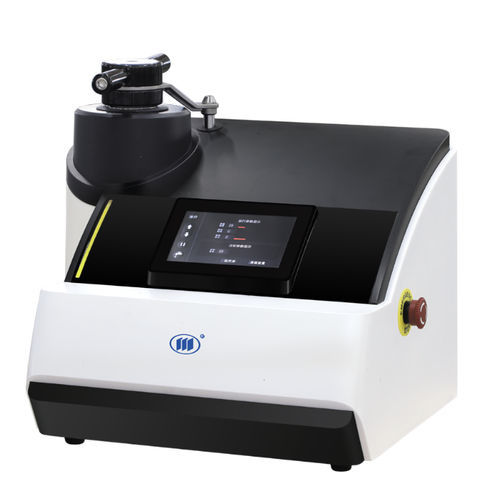

Automatic mounting press ixiang®6

pneumaticfor metallographic sampleslaboratory

Product overview
Mounting small, hard-to-handle or irregular metallographic and petrographic specimens facilitates subsequent grinding and polishing, enables correct observation of material microstructure under the metallographic microscope and reliable hardness testing.

Equipment features

• Innovative integrated heating and cooling design reduces mounting cycle to approximately 6 minutes, improving productivity.
• Pressure-retention circuit expels residual air from the material to produce uniformly textured mounts and prevent air bubbles, ensuring smooth specimen surfaces.
• Safety fixture prevents the upper cover from popping open during specimen removal, reducing injury risk.
• Programmable control system with nine user-definable preparation programs to meet varied mounting requirements.
• ABS housing with refined color scheme and ergonomic design for improved user experience.
• Single workstation capable of mounting two specimens simultaneously with consistent results.
• Large capacitive touchscreen with high display performance for intuitive operation.

Main technical parameters

• Model: ixiang® 6
• Workstations: Single workstation (supports simultaneous mounting of two specimens at one station)
• Pressurization: Pneumatic
• Inlay mold sizes (Imperial): 1", 1.25", 1.5", 2"
• Inlay mold sizes (Metric): 25 mm, 30 mm, 40 mm, 50 mm
• Air supply pressure: 0.6 MPa (500 kgf)
• Maximum pressure: 500 kgs
• Heating temperature range: 90℃–200℃ (optional)
• Heating power: 2000 W (for 1", 1.25" / 25, 30 mm) — 2600 W (for 1.5", 2" / 40, 50 mm)
• Cooling method: Water cooling
• Cooling adjustment — Temperature: 40℃–90℃, adjustable in 1℃ steps
• Cooling adjustment — Time: 0–10 minutes, adjustable in 1-minute steps
• Operating environment: Temperature 5℃–40℃; humidity 30%–90% (non-condensing)
• Voltage/Frequency: 220V, 50Hz, single-phase (110V available on request)
• Inlet: 3/4 standard inlet
• Outlet: Φ10 rubber hose
• Net weight: 34 kg
• External dimensions (W×D×H): 530×485×463 mm

Applications

• Metallographic sample preparation for microscopy
• Petrographic specimen embedding
• Specimen preparation for hardness testing
• Routine laboratory quality control and materials testing
