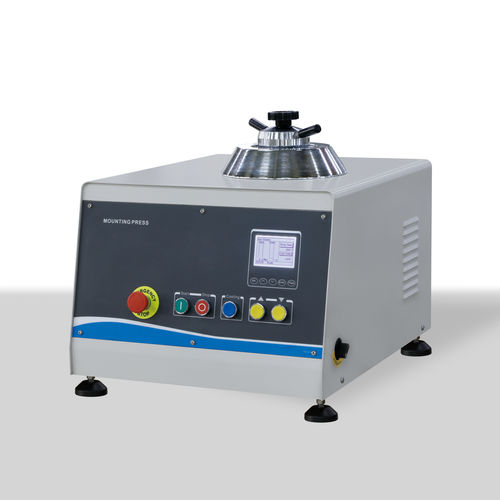

Automatic mounting press ZXQ-5

for metallographic samples

This machine is used for setting up those irregular specimens. Then the specimens can fix in with the request of the surface. It also can protect the edge and keep out of the abrasion .The specimen size is limited by the Semi-automatic or Automatic This machine is used for setting up those irregular specimens. Then the specimens can fix in with the request of the surface. It also can protect the edge and keep out of the abrasion .The specimen size is limited by the Semi-automatic or Automatic Grinder/Polisher. With this view, this machine is one of the necessary equipment in the metallographic lab. The machine is automatic mounting press for metallographic specimen. It is fit of all thermosetting materials because of the cooling system .It can finish automatically with the heating temperature, the holding time, and acting force. The operator can change 4 specification patterns according to the difficult specimens. It can make 2 specimens at one time. Technology Parameter Pattern specification:Φ25mmΦ30mmΦ40mmΦ50mm Power:220V 50HZ Maximum consumption:1800W Pressure:0~2MPa Temperature:0~300℃ Holding time:0~99minutes and 99seconds Outline dimension:615×510×500mm Weight:100KG Cooling: water cooling
