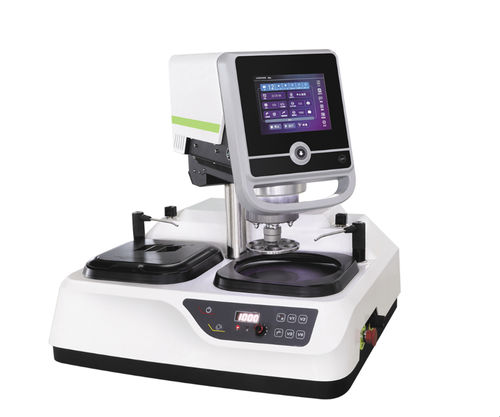

Metallographic sample grinding polishing machine MoPao®4S

for sample preparationlappingfinishing

Overview
The Mopao®4S Automated Metallographic Sample Grinding and Polishing Machine is a next-generation, high-precision, fully automated system for preparation of metallographic specimens. The unit integrates a water-cooling system and abrasive-flushing nozzles to maintain sample temperature during grinding and to remove abrasive particles, preventing thermal alteration of the microstructure. The enclosure is ABS with stainless-steel standard components for improved corrosion resistance and easy cleaning. Designed for automated coarse grinding, fine grinding and progressive polishing, it is suitable for industrial laboratories, research institutes and university teaching labs.

Technical specifications
Machine power: Single-phase AC 220V 50Hz
Input power: 3.1 kW
Grinding/polishing disc diameter: Φ250 mm (standard), optional Φ203 mm
Polishing pad speed: 0–1000 r/min; adjustment increment 20 rpm; preset speeds: 150, 300, 600, 1000 r/min
Disc direction: Clockwise or counterclockwise adjustable
Head speed: 0–150 r/min (stepless)
Single-point force: 5–60 N
Central force: 20–200 N
Sample capacity: 6 specimens (standard)
Specimen size: Φ30 mm (standard); optional Φ22, Φ25, Φ40 mm
Sample preparation time: 0–12 h
Language support: 16 languages
Program storage: Up to 256 programs (grinding/polishing recipes)
Compressed air: >0.35 MPa (recommend external regulator/filter set to 0.5 MPa)
Dimensions (W×D×H): 760 × 706 × 717 mm
Net weight: 126 kg

Included consumables

• Adhesive-backed metallographic sandpaper — 20 pcs — 240 grit
• Adhesive-backed metallographic sandpaper — 20 pcs — 400 grit
• Adhesive-backed metallographic sandpaper — 20 pcs — 800 grit
• Adhesive-backed metallographic sandpaper — 20 pcs — 1200 grit
• Adhesive-backed silk velvet polishing cloth — 3 pcs
• Adhesive-backed wool cloth — 3 pcs
• Magnetic rubber pad — 2 pcs
• Non-stick tray — 5 pcs
• Diamond suspension grinding/polishing fluid — 1 bottle (W2.5 500 ml)
• Diamond spray polishing agent — 1 bottle (W2.5 350 ml)

Features / Technical parameters

• Model: Mopao®4S
• Power supply: Single-phase AC 220V 50Hz
• Rated input: 3.1 kW
• Disc diameter: Φ250 mm (standard), optional Φ203 mm
• Pad speed range: 0–1000 r/min (stepless) with 4 preset speeds
• Head speed range: 0–150 r/min (stepless)
• Disc direction: Clockwise or counterclockwise
• Force loading: Single-point 5–60 N; Central 20–200 N
• Sample capacity: 6 specimens
• Specimen size: standard Φ30 mm (other sizes available)
• Program storage: Up to 256 recipes
• Compressed air: >0.35 MPa (recommend 0.5 MPa regulator/filter)
• Dimensions (mm): 760 × 706 × 717
• Net weight: 126 kg
