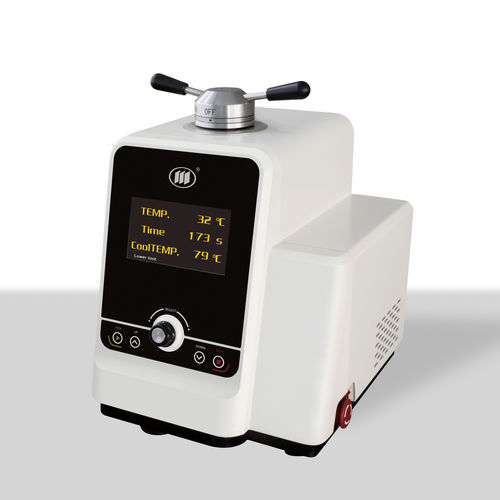

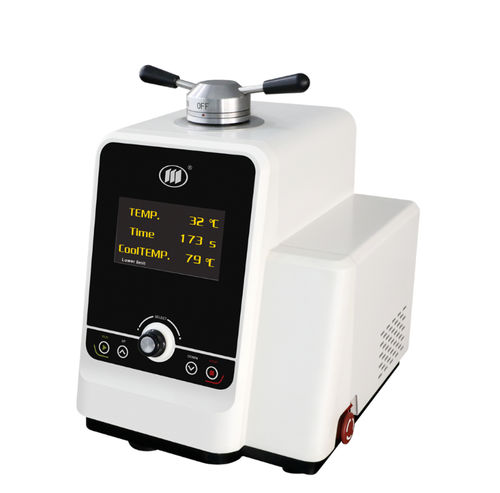

Automatic mounting press ZXQ-2

for metallographic sampleslaboratory

Overview
The ZXQ-2 automatic metallographic sample mounting machine is designed for mounting very small, hard-to-handle or irregular metallographic and petrographic specimens to facilitate subsequent cutting, grinding and polishing for metallographic observation, spectroscopic analysis or hardness testing. The unit is controlled by a microcontroller with programmable sequences, performing automatic heating, pressurization, controlled cooling and final automatic pressure release and shutdown, allowing unattended operation throughout the preparation cycle. The interface is simple and operation is straightforward, suited to laboratory and production environments.

Main Technical Parameters
Specimen pressing diameter: φ22, φ30, φ45 (three specifications; one standard configuration—select when ordering).
Heating temperature range: 100–200℃
Cooling temperature range: 20–90℃
Holding pressure time range: 0–999 s
Heating power: 450–1000 W
Input power: Single-phase AC 220 V, 50 Hz
External dimensions: 350 mm × 450 mm × 470 mm
Net weight: 45 kg

Characteristics / Specifications

• Model: ZXQ-2
• Microcontroller programmable automatic sequence: heating, pressurization, gradual cooling, automatic pressure release and shutdown
• Suitable for very small, hard-to-hold or irregular metallographic and petrographic specimens
• Enables unattended operation during the entire mounting process
• User-friendly interface and simple operation, suitable for laboratory and production use
• Specimen pressing diameters available: φ22, φ30, φ45 (select when ordering)
• Heating temperature range: 100–200℃
• Cooling temperature range: 20–90℃
• Holding pressure time range: 0–999 s
• Heating power: 450–1000 W
• Input power: Single-phase AC 220 V, 50 Hz
• External dimensions: 350 × 450 × 470 mm
• Net weight: 45 kg
