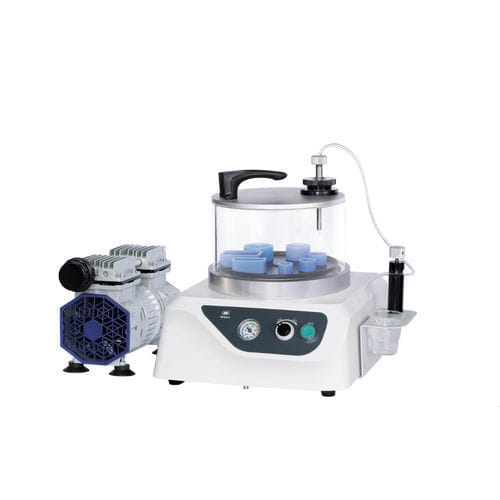

Cold mounting press Vim®-1

for metallographic samplesvacuumlaboratory

Overview
The Vim®-1 vacuum cold-mounting system eliminates entrapped air from specimens to ensure mounting compound fully fills voids. This process improves edge integrity and provides stable support for fragile samples during grinding and polishing.

Key features

• Robust vacuum pump rapidly evacuates entrapped air from porous specimens.
• Rotating cup holder inside the vacuum chamber allows simultaneous vacuum impregnation of multiple samples.
• Integrated dispensing mechanism accepts pre-mixed mounting compounds and dispenses directly into molds in a single operation.
• Compatible with epoxy and polyester cold-mounting compounds.
• Vacuum encapsulation prevents air ingress, enhancing edge support and reducing sample damage during preparation.

Operation
Place the specimen mold inside the vacuum chamber, mix the mounting compound thoroughly, position the mixing cup on the rotating holder and secure the vacuum chamber to the base. Pour the mounting compound into the mold, allow it to flow and fill completely, maintain vacuum for ~1 minute, release to atmospheric pressure and repeat the cycle several times. Open the chamber and allow the compound to cure under normal conditions.

Main Technical Parameters
Maximum vacuum degree: -85 kPa
Vacuum chamber dimensions: φ260×125 mm
Input voltage: 220 V / 110 V
Pallet rotation speed: 5 rpm
Host power: 6 W

Characteristics / technical specifications

• Model / Commercial designation: Vim®-1
• Maximum vacuum degree: -85 kPa
• Vacuum chamber dimensions: φ260×125 mm
• Input voltage: 220 V / 110 V
• Pallet rotation speed: 5 rpm
• Host power: 6 W
• Compatible mounting compounds: epoxy and polyester cold-mounting compounds
• Main components: vacuum pump, rotating cup holder, dispensing mechanism
