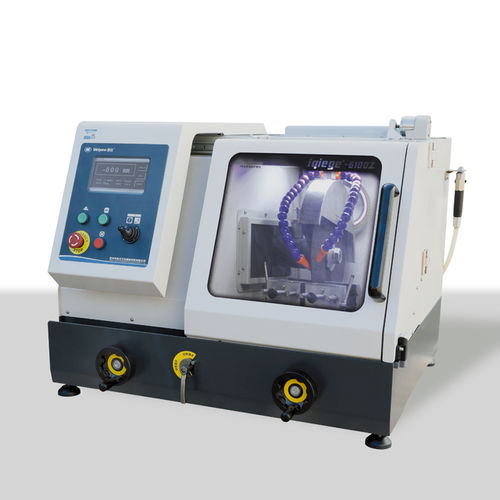

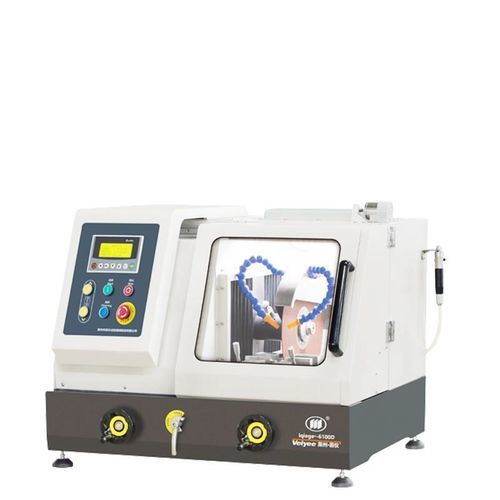

Metallographic cutting machine iqiege 6100D

rotary bladefor metalsample

Product overview
The iqiege® 6100D is a metallographic sample cutting machine combining manual and automatic cutting modes. It processes metals, rocks and ceramics with a dedicated cooling system to prevent thermal damage, a large cutting chamber and intelligent load protection. The device provides precise automatic feed (1–15 mm/min), real-time motor load monitoring and flexible operation suitable for educational and industrial laboratories.

Main technical parameters

• Model: iqiege® 6100D
• Power supply: 380V, 50Hz
• Lighting: LED ceiling light
• Noise: ≤85 dB
• Cooling water tank capacity: 60 L
• Spindle speed: 2200 r/min
• Cutting disc: φ350×2.5×32 mm
• Maximum cutting capacity: Φ100 mm
• Removable baffle: Yes
• Motor power: 3 kW
• Spindle travel: 145 mm
• Worktable travel: 300 mm
• Worktable dimensions: 330×280 mm
• External dimensions: 900×860×620 mm
• Weight: 285 kg
• Automatic feed rate: adjustable 1–15 mm/min

Key features

• Combined manual and automatic cutting modes for operator control and repeatability.
• Dedicated cooling system to minimize heat-induced sample damage.
• Large-capacity cutting chamber to accommodate varied sample sizes.
• Three cutting modes with adjustable automatic feed (1–15 mm/min).
• Real-time motor load monitoring and intelligent overload protection to safeguard wheel and sample.
• Compatible with metals, rocks and ceramics for metallographic and petrographic analysis.
• Designed for colleges, industrial laboratories and quality control environments.

Applications
Sample preparation for metallographic and petrographic microstructure analysis in universities, research institutes, industrial QC labs and material testing facilities.

Specifications / Summary

• Model: iqiege® 6100D
• Disc: φ350×2.5×32 mm
• Max cutting capacity: Φ100 mm
• Spindle speed: 2200 r/min
• Motor: 3 kW
• Cooling tank: 60 L
• Feed rate: 1–15 mm/min (adjustable)
• Dimensions: 900×860×620 mm
• Weight: 285 kg
