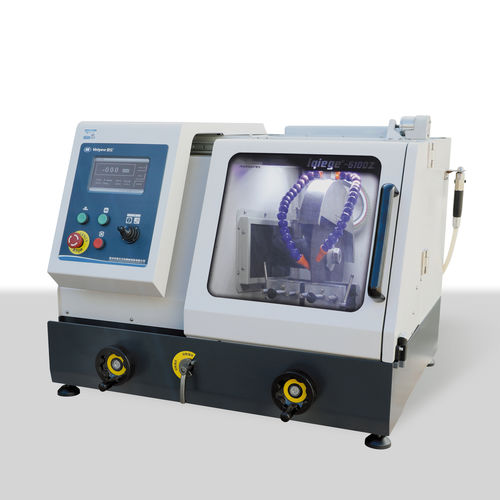

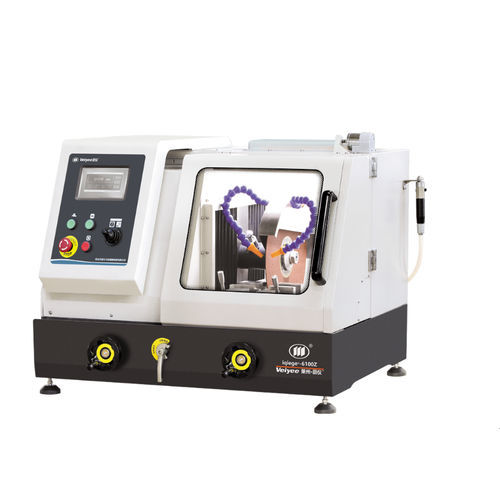

Rotary blade cutting machine iqiege 6100Zfor metalsamplenumerical control
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- sample
- Control type
- numerical control
- Applications
- metallographic
- Workpiece loading
- manual loading
- Other characteristics
- precision, economical, transversal
- Maximum cutting height
100 mm
(3.9 in)- Weight
285 kg
(628.32 lb)
Description
Product Overview
The iqiege® 6100Z is an intelligent metallographic specimen cutting machine combining manual and automatic cutting modes. It processes specimens from metals, rocks and ceramics for metallographic and petrographic microstructure analysis. The machine includes a dedicated coolant system to prevent thermal damage to specimens, a large-capacity cutting chamber, three cutting modes and intelligent load protection. Joystick control enables precise and smooth worktable movement. An integrated manual–automatic mode merges the intuitive control of manual operation with the repeatability of automatic cutting. Real-time spindle current monitoring protects against overload. The automatic feed rate is adjustable from 1 to 10 mm/min, ensuring stable performance for routine specimen preparation. The equipment is suitable for colleges, universities and industrial laboratories seeking a balance of efficiency, safety and usability.
Main features
Main Technical Parameters
Model: iqiege® 6100Z
Power supply: 380V, 50Hz
Lighting: LED ceiling light
Noise: ≤85 dB
Cooling water tank capacity: 60 L
Spindle speed (r/min): 2200
Cutting disc specifications (mm): φ350×2.5×32
Maximum cutting capacity (mm): Φ100
Removable baffle: Yes
Motor power (kW): 3
Spindle travel (mm): 145
Worktable travel (mm): 300
Spindle lifting stroke (mm): None
Worktable dimensions (mm): 330×280
External dimensions (mm): 900×860×620
Weight (kg): 285
Technical specifications
The iqiege® 6100Z is an intelligent metallographic specimen cutting machine combining manual and automatic cutting modes. It processes specimens from metals, rocks and ceramics for metallographic and petrographic microstructure analysis. The machine includes a dedicated coolant system to prevent thermal damage to specimens, a large-capacity cutting chamber, three cutting modes and intelligent load protection. Joystick control enables precise and smooth worktable movement. An integrated manual–automatic mode merges the intuitive control of manual operation with the repeatability of automatic cutting. Real-time spindle current monitoring protects against overload. The automatic feed rate is adjustable from 1 to 10 mm/min, ensuring stable performance for routine specimen preparation. The equipment is suitable for colleges, universities and industrial laboratories seeking a balance of efficiency, safety and usability.
Main features
- Integrated manual and automatic cutting modes
- Dedicated coolant system to prevent high-temperature specimen burns
- Large-capacity cutting chamber
- Three selectable cutting modes
- Intelligent load protection and real-time spindle current monitoring
- Joystick control for precise, smooth worktable movement
- Adjustable automatic feed rate: 1–10 mm/min
- Cost-effective solution for educational and industrial laboratories
Main Technical Parameters
Model: iqiege® 6100Z
Power supply: 380V, 50Hz
Lighting: LED ceiling light
Noise: ≤85 dB
Cooling water tank capacity: 60 L
Spindle speed (r/min): 2200
Cutting disc specifications (mm): φ350×2.5×32
Maximum cutting capacity (mm): Φ100
Removable baffle: Yes
Motor power (kW): 3
Spindle travel (mm): 145
Worktable travel (mm): 300
Spindle lifting stroke (mm): None
Worktable dimensions (mm): 330×280
External dimensions (mm): 900×860×620
Weight (kg): 285
Technical specifications
- Model: iqiege® 6100Z
- Power supply: 380V, 50Hz
- Lighting: LED ceiling light
- Noise level: ≤85 dB
- Cooling tank capacity: 60 L
- Spindle speed: 2200 r/min
- Cutting disc: φ350×2.5×32 mm
- Maximum cutting capacity: Φ100 mm
- Removable baffle: Yes
- Motor power: 3 kW
- Spindle travel: 145 mm
- Worktable travel: 300 mm
- Spindle lifting stroke: None
- Worktable dimensions: 330×280 mm
- External dimensions: 900×860×620 mm
- Weight: 285 kg
