Water-based recirculation system WT-01

Product overview

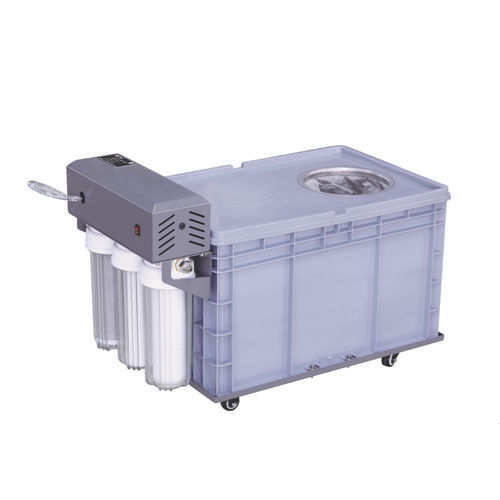

The WT-01 is a recirculating water filtration tank engineered for metallographic grinding and polishing machines. It employs a five-stage filtration process with high-precision cartridges to achieve filtration accuracy up to 0.1 µm, supplying water that meets precision polishing requirements while reducing water consumption and operating costs and supporting environmental compliance.

Product advantages

• Compatible with grinding and polishing machines of all brands
• All-plastic water tank: corrosion-free
• High-pressure, low-noise cooling water pump for consistent filtration performance
• Equipped with casters for easy repositioning
• Five-stage filtration with a transparent filter for visual inspection and cartridge replacement
• Filter cartridge options including 0.1 µm for fine polishing

Technical data
Model: WT-01
Filtration accuracy: up to 0.1 µm
Flow rate: 3.5 L/min
Voltage: AC220V
Power: 120W
Dimensions (W×D×H): 725×400×410 mm
Filter cartridges: I, II, III; 0.1 µm option available

Specifications / key technical data

• Five-stage filtration system with high-precision cartridges
• Filtration accuracy: 0.1 µm (option)
• Flow rate: 3.5 L/min
• Power supply: AC220V
• Power consumption: 120W
• Tank material: all-plastic, non-rusting
• Pump: high-pressure, silent cooling water pump
• Mobility: fitted with casters
• Compatibility: suitable for grinders and polishers of all brands
