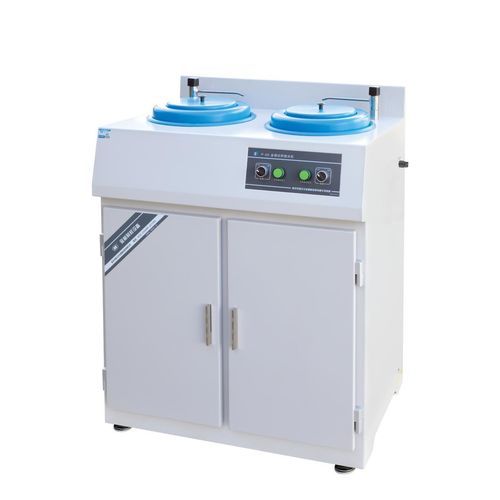

Metal polishing machine P-2G

for metallographic samplesindustrialfinishing

Overview
In metallographic specimen preparation, polishing is a critical step to obtain a mirror-like reflective surface after grinding. The P-2G metallographic specimen polisher was developed from user feedback and is designed for smooth transmission, low noise, and convenient operation and maintenance, enabling polishing of a wide range of materials. It is suitable for metallography laboratories in industrial and mining enterprises, universities, and research institutions.

Main features

• Smooth mechanical transmission
• Low operational noise
• Simple operation and maintenance
• Compatible with various specimen materials
• Customizable rotational speed (1400 r/min standard; optional 900 r/min)

Technical specifications

• Model: P-2G
• Disc diameter: ∮203 mm
• Rotational speed: 1400 r/min (optional 900 r/min)
• Power supply: Single-phase 220V/50Hz
• Input power: 360W
• External dimensions: 570×910×1100 mm
• Net weight: 74 kg

Applications

• Metallographic laboratories in industry and mining
• University and technical college laboratories
• Research institutions and material analysis labs
• Quality control and failure analysis

Ordering and customization

• Speed and voltage variants available on request
• Spare parts and maintenance kits can be supplied
• Technical documentation and user training available
