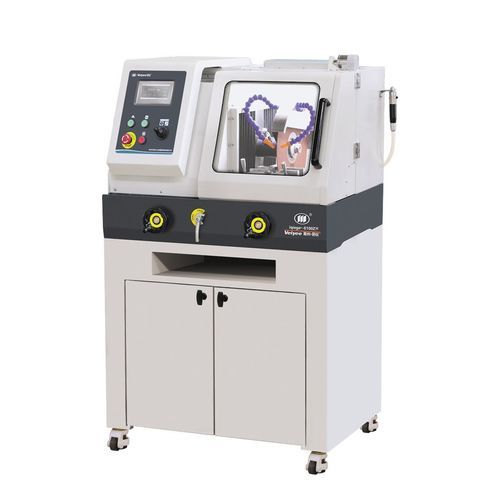

Rotary blade cutting machine iqiege®6100ZH

for ceramicsfor metalfor stone

Product Overview
The iqiege® 6100ZH is an automatic/manual metallographic sample cutting machine designed for precise preparation of specimens from metals, rocks and ceramics for metallographic and petrographic analysis. It combines manual control and automated feed to suit routine laboratory workflows and complex one-off cuts. The unit integrates a dedicated coolant cooling system to remove cutting heat and prevent thermal damage to samples. Features include a large cutting chamber, three cutting modes, intelligent load protection, joystick control for spindle height and worktable movement, and real-time spindle current monitoring to prevent overload.

Main Advantages

• Sliding safety door with side-opening access for safe, unobstructed entry to the cutting chamber.
• Patented safety lock prevents motor start unless guard is fully closed; automatic stop if guard opens during operation.
• Removable right-side guard allows cutting of long or continuous workpieces that exceed chamber width.
• Side-sliding chamber door minimises coolant leakage and maximises usable workspace.
• Open shelving for convenient storage of cutting discs, wrenches and tools, improving workflow efficiency.

Detailed Specifications
Model: iqiege® 6100ZH Automatic/Manual Cutting Machine
Power supply: 380V, 50Hz
Spindle speed (r/min): 2200
Operating method: Touchscreen operation
Cutting disc size (mm): φ350×2.5×32
Maximum cutting capacity (mm): Φ100
Motor power (kW): 3
Spindle travel (mm): 145
Worktable travel (mm): 300
Worktable dimensions (mm): 330×280
External dimensions (mm): 960×855×1550
Water tank placement: Built-in
Weight (kg): 296

Features / Technical Specifications

• Model: iqiege®6100ZH
• Manufacturer: LaiZhou Weiyi Experimental Machinery Manufacture Co., Ltd.
• Cutting modes: Manual and automatic (integrated)
• Feed rate (automatic): Adjustable 1–10 mm/min
• Spindle speed: 2200 r/min
• Cutting disc: φ350 × 2.5 × 32 mm
• Maximum cutting capacity: Φ100 mm
• Motor power: 3 kW
• Spindle travel: 145 mm
• Worktable travel: 300 mm
• Worktable size: 330 × 280 mm
• Built-in coolant/water tank with dedicated cooling system
• Real-time spindle current monitoring and intelligent load protection
• Joystick control for spindle height and worktable movement
• Sliding safety door, side-opening access and patented safety lock
• Removable right-side guard for extra-long workpieces
• Open shelving for consumables and tools
• Net weight approx. 296 kg
