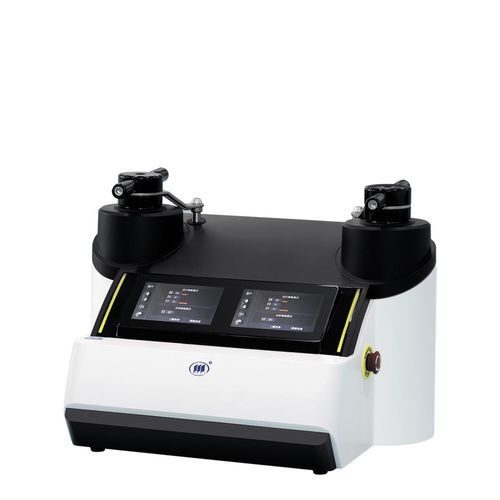

Hot mounting press ixiang®6S

automaticpneumaticfor metallographic samples

Product overview
Mounting small, hard-to-handle or irregular metallographic and petrographic specimens to facilitate subsequent grinding and polishing, enable accurate observation under a metallographic microscope and reliable hardness testing.

Key features

• Integrated heating and water-cooling design reduces mounting cycle to approximately 6 minutes, increasing throughput.
• Pressure-retention circuit removes residual air to prevent bubbles and ensure uniform specimen texture.
• Safety fixture prevents the upper cover from popping open during specimen removal.
• Programmable control with nine user-definable preparation programs.
• Compact ABS housing with modern appearance for improved ergonomics compared with traditional bulky units.
• Dual workstations allow simultaneous mounting of two specimens with consistent results.
• Large capacitive touchscreen for intuitive control and monitoring.

Main technical specifications

• Model: ixiang® 6S
• Workstations: Dual workstations
• Pressurization: Pneumatic
• Inlay mold sizes: Imperial — 1 in, 1.25 in, 1.5 in, 2 in; Metric — 25, 30, 40, 50 mm
• Air supply pressure: 0.6 MPa (500 kgf)
• Maximum pressure: 500 kgs
• Heating temperature: 90°C–200°C (optional)
• Heating power: 3800 W (smaller diameters) / 5000 W (larger diameters)
• Cooling method: Water cooling; temperature range 40°C–90°C (1°C steps); cooldown time 0–10 min (1 min steps)
• Operating environment: 5°C–40°C; 30%–90% RH (non-condensing)
• Voltage/Frequency: 220V 50Hz single-phase (110V available on request)
• Fluid connections: 3/4 standard inlet; Φ10 rubber hose outlet
• Net weight: 54 kg
• Dimensions (W×D×H): 671×485×463 mm

Typical applications

• Metallographic and petrographic sample preparation laboratories
• Materials testing and hardness laboratories
• Quality control and production laboratories
• Research and development facilities
