TYPICAL SPECIFICATIONS :
- Frames: 6” x 8 Ga. galvanized channel
- Supports: 5” x 8 Ga. galvanized channel, adjustable +/- 2”
- Cross bracing: 4” galvanized steel channel
- Support centers: 5’ & 10 ’ dependent on loading
- Rollers: 1.9” x .145 wall; 2 ½ “ x 11 gauge
- Hex axles: 7/16” ; 11/16”
- Bearings: pressed fit, 145 lb. and 290 lb. capacity
- Roller capacity: 280 lb. and 570 lb.
- Effective conveying widths: 15” to 51”
- Roller centers: 4”
- All stainless steel construction available
- Container flow control devices available
|
|

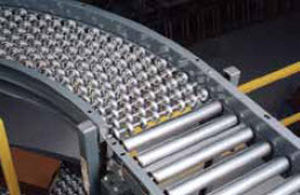

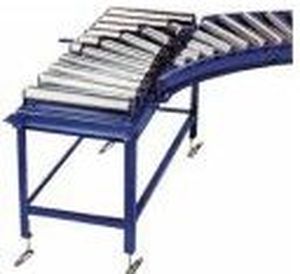

Conveyor roller by gravity in curve
Structure in carbon steel
Party line in Flow Rack (mini-rail)
The curve with free rollers
Ocional: angles of 15º to 180º
|
|
|
|
|
|
UNEX Gravity Conveyor with treated ends brings superior flow and "drop-in" ease to applications that go beyond the capacities of standard carton flow. Now even heavy products (over 50 lbs/ft.), long unsupported spans (over 7 ft.) and difficult to convey items can achieve the benefits of live storage.
Conveyor provides a greater handling capacity than standard flow track and the steel rollers can withstand abusive conditions. The conveyor end treatments, designed for adding to rack, make installation and relocation easy, fast, and flexible.
- Rugged, Conveyor Based
- Steel Rollers and Channel
- Easy to Install and Relocate
- Add to any Pallet Rack
- Framework Available for Complete Track and Rack Units
- Superior Flow - Even for Hard to Convey Items
Applications :
- Add to UNEX Framework or Pallet Rack to Create Carton Flow
- Add to any Pallet Rack - New or Old!
- Add to UNEX Framework
- Cut Lengths to Fit Existing Footprint
- Product Always at the Pick Point
- Fifo/First In, First Out
- Dense, Organized Product Layout
|
|

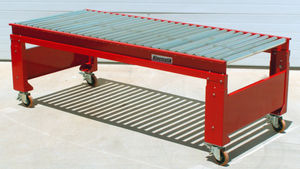

G100 Series Conveyors
Standard features include interchangeable PVC rollers with encased stainless steel bearings, set high or low, a spring loaded stainless steel axel, stainless steel formed channel frames and an included coupler.
TECHNICAL SPECIFICATIONS:
Size range:
Rollers: 1.5" diameter, 3" pitch.
Widths: 12", 18" or 24".
Lengths: 40", 80", or to requirement.
Options:
Stainless steel adjustable floor supports.
Washdown locking swivel casters.
Leveling feet.
Side guides.
End stop.
|
|
Logistex GR200 Gravity Coi For simple and economical prouct transportation
Features:
- Available in light- and medium-duty frames
- Available in straights, curves, junctions, and gates
- Roller and skate wheel options
- Various pitches to suit all types of loads
Benefits:
- Quietly conveys a wide range of product types
- Can be installed either pitched or level
- Skate wheel design minimizes spare parts and provides layout flexibility
- Low maintenance costs with easy-to-replace pop-out rollers
|
|
Automotion's pre-engineered gravity roller conveyor is an economical, durable, and safe solution to move your light to medium duty loads. The roller spacing is strategically designed to transport a wide range of products including rigid, soft, and even fragile
- Roller gravity conveyor is available in standard or light duty..
- Standard duty is composed of a 3-1/2" deep 10 ga. frame with 1-7/8" rollers with a 7/16" hex axle. Has a 100 lb. / ft. live load capacity.
- Light duty has a 2-1/2' deep 12 ga. frame with 1 3/8" rollers and a 1/4" round axle. Available in 18" or 24" widths only. Rated at a 50 lb. / ft. live load capacity.
- List of pre-engineered figures include: straights, curves, sweeps, and air-brake beds.
|
|
|

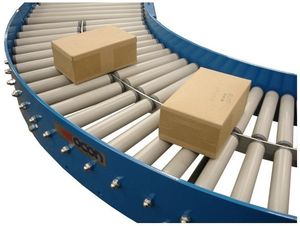

Gravity Roller Curves add to the versatility of straight converyors. Curve provide smooth pruduct flow through turns. Curves will convey products with minimum amount of pitch based on weight and size. Guard rails (optional item) may be added for product protection.
|
|
Gravity conveyors employ the most simple and convenient mechanism possible. Rather than using the power of a motor, the conveyor is placed at an incline so that the articles move due to their own weight or pushing by hand.For product specifications and usage, please click on the suitable models below.
Steel
Stainless steel
Aluminium
Resin
FRT/PRT/SRT/MRT/Direction-switching roller conveyor
For manual direction switching
The FRT, PRT, SRT and MRT direction-switching roller conveyors feature both left and right curved models. Different roller types are used for the different models, with differing
3RT/3-Directional Roller Conveyor
For manual diversion into 3 directions
Direction switching is achieved by the manual rotating of the curved conveyor between the other 3 straight conveyors.
|
|
Ideal for the convoying of vats, cases, paperboards...
Horizontally or in gravity
- Frame made out of sheet 20/10ème
- Completion epoxy painting, gray ral 7035 or blue 5002
- Rollers zinc coated steel or PVC diameter 50mm,
Center with spring 8mm
- Working load/meter:
Rollers PVC: 60 kg, 1 pied/3m
Rollers steel: 100 kg 1 pied/1,5m
On request
- Other dimensions, others not of rollers
- More important Loads
- Conveyers with rollers, extensible conveyers
- Width to measure
|
|
conveyer with free rollers diameter 30mm, rollers PVC, zinc coated steel where STAINLESS with the step of 32,5mm. allows to convoy loads mini length. 100mm.
Frame stainless steel. bilateral guidance, dead stop.
adjustable feet 700/900mm
|
|
Roller Gravity Conveyor is the most cost effective and versatile solution to move light and medium duty products (cartons, totes, trays, etc.) from one point to another. Also, used for staging of goods and to aid the transport from differing areas of distribution or manufacturing facilities.
Application :
Gravity Roller Conveyor is commonly used for static accumulation/transportation of cartons in shipping, picking, receiving and/or staging areas.
|
|
Modular.
Gravity and accumulating handling of any load with flat or ribbed bottom.
Plastic or steel roller conveyor for loads up to 160 kg/m.
Steel rollers are advised to handle steel totes, wooden boxes, mini pallets...
Easy maintenance : instantaneous roller replacement (spring axis).
|
|
|
|
|
|

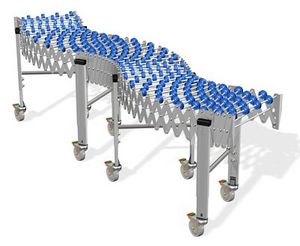

The 376PL is the leading expandable conveyor for your outbound product and can be equipped with several engineered options to maximize performance. Fixed height perpendicular legs make sure your conveyor pitch remains constant and provides gravity flow, while the HERRINGBONE TRANSITION centers the product on the 376PL as it goes from your fixed conveyor to the truck loading system. Storage is made simple by the GUIDE TRACK SYSTEM designed to allow you to store the 376PL under your fixed conveyor to maximize control and storage space. The 376PL is the 1st conveyor to offer ALL STEEL perpendicular leg brackets, giving you the highest quality conveyor on the market while reducing maintenance cost.
Conveyor Formats
Available in 18", 24" and 30" widths. 36" available upon request. Lengths can be tailored to your specific application.
Height adjustment
Preset individual leg heights are application specific. To maintain gravity flow, a pitch of 5/16 per foot is recommended. Conveyor height is engineered to your specific application.
Legs
Zinc plated 1 1/4 O.D. steel tubing with reinforced inner leg and double cross braces.
Heavy duty casters
Standard 6"x 2" casters with heavy duty stem. Casters with swivel/ wheel lock steel pedal brakes are provided on the first and last legs. 8" x 2" casters available for added strength and mobility.
|
|
