An in-line gear motor is one in which the input and output shafts are coaxial. It can use AC, DC, brushless, synchronous, asynchronous, stepper, permanent-magnet or other types of motor. The gear elements may be worm, bevel, helical, planetary, etc. However, since planetary gear (epicyclic) motors are inherently coaxial, they are favored over perpendicular types, which would require the addition of a transfer gear.
These devices are used wherever coaxial input and output shafts are necessary.
In-line gear motors can use any gear motor technology, since the determining factor is the relative orientation of the input and output shafts. However, planetary gear models have the advantage of being inherently coaxial.
 |
 |
In-line helical electric gearmotor 10 - 26 000 Nm, 0.12 - 160 kW NORD
Features: - robust cast iron housing - gearing meets up to date international high standards - wide selection of motors and brake-motors...
 |
 |
The Sumitomo Cyclo® drive is unsurpassed by any other inline drive available in the market today. Cyclo's unique epicycloidal design has advantages superior to speed reducers using common involute tooth gears. Cyclo components operate in compression, not in shear. Unlike...
 |
 |
In-line helical electric gearmotor i= 1.4:1 - 70:1, max. 11 000 Nm, 90 kW | M series Radicon
Series M helical inline geared motors and reducers provide a very efficient and compact drive solution to meet...
 |
 |
In-line electric AC spur gearmotor 5 Nm, 9 - 74 W | AC MINIMOTOR
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed, with external ventilation. Thermal safety feature (single-phase-model)....
 |
 |
In-line helical electric gearmotor 50 - 2 300 Nm, 0.55 - 22 kW | RD series VARVEL
Leading applications: general purpose, medium and fractional power drives. Design: 7 sizes; housings and covers of aluminium die cast up to size 4, of cast iron from size 5; two- and three-gear trains. The input modules ISM with...
 |
 |

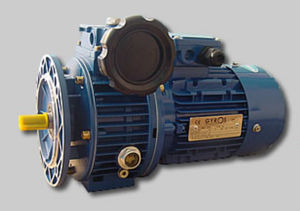

MVB - MVB/C Series of stepless speed motor-variators and motor-variators with gear reducers are developed on the basis of manufacture with advanced technologies that makes it specially adapted to work in ceramics, conveying, packing, chemical, textile, foodstuffs, machine-tools and all kinds of automatic production...
 |
 |
Length "L" of the gearmotor as a funtion of reduction and outlet number of revolution with the standard motor 763 60 output W 3400 Rpm loadness, 12/24 Vdc. Outlet shaft is supported by two coupled screened bearings. The motor...
 |
 |
In-line electric gearmotor with planetary reduction stage VDC series ebm-papst
VDC gearmotors VARIODRIVE Compact motors...
 |
 |
In-line electric spur gear motor 0.09 - 11 kW, 900 daNm | Cat.ES Rossi
Maximum interchangeability Motors to IEC standards Foot mounting...
 |
 |
In-line helical electric gearmotor max. 90 kW, max. 11 000 N Power Jacks
Power Jacks offers a wide range of reduction gearboxes for actuator system building whether it be a single...
 |
 |
In-line helical electric gearmotor 0.12 - 18.5 kW, 25 - 700 rpm | G series ABM
Benefits of ABM helical geared motors Helical geared motors are the most commonly used industrial gearboxes. They efficiently increase motor torque while reducing motor speed to a favorable...
 |
 |
The RE and RKE series gearboxes are featured by a cast iron housing , with feet or flange , and are available coupled to compact version motors ( RE ) or...
 |
 |
In-line electric gearmotor with cycloidal reducer China Forcedriving Group Ltd.
Cycloidal pin gear reducer is a new type transmission device, based on principle of epicyclic transmission and adopting K-H-V small gear run-out. Its transmission process is as follows: a double-eccentric sleeve with 180o dislocation is installed on the input...
 |
 |
In-line electric AC spur gearmotor 40 W, 2.3 - 200 rpm | H Series SIREM
Technical features: • Single or three phase asynchronous motor • Permanently oil lubricated • Thermal cut-out • 2...
 |
 |
In-line helical electric gearmotor US Gearmotors
Features & Benefits - Available in a variety of input styles - 1/6 through 75HP gearmotors - Output torque through...
 |
 |

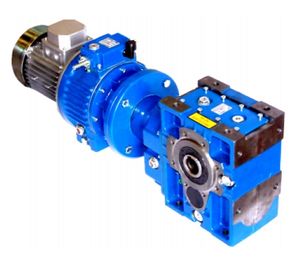

In-line electric gearmotor with planetary reduction stage MKF - MOT Siti
Combined units of the series MKF + MOT Mechanical speed variator MKF...
 |
 |
In-line helical electric gearmotor 0.21 - 9.68 kW, 10 - 6 500 Nm | SMS C series STÖBER
SMS C Helical Geared Motor Different housing designs offer a multitude...
 |
 |
Planetary DC electric gearmotor 24 VDC, 1.7 W | SM22P Smart Motor Devices
SM22P is a miniature brush geared DC motor with planetary reducer. The rated power of the motor is 1.7W, planetary reducer 1/3968 provide rated speed 2 rpm and rated torque 6 kgf*cm. Main parameters...
 |
 |
Three-phase asynchronous electric gearmotor for feeding systems in poultry farms Transtecno
The PoultryTecno gearmotors range, has been specifically designed for feeding systems in poultry farms. Gearmotors...
 |
 |
Cast iron hydraulic gearmotor 58 - 161 cm³, max. 276 bar (4 000 psi) | FM30 Concentric Hof GmbH
FM30 Series motors provide excellent high speed performance in parallel circuit...
 |
 |
The parallel shaft geared motor features an ideal structure and tooth design for a longer maintenance-free period at a lower price. Hyosungs F-series, RP-series, helical geared motor product series, and standard geared motor series are designed to have long lifetime and high performance. ( F-series: AGMAⅡ Class ( S.F=1.4~2.0), RP-series:...
 |
 |
Planetary electric servo-gearmotor 400 - 750 W | TSC06/TSB08 Teco Electro Devices Co., Ltd
Applicable to the use of high torque and low speed replacing traditional deceleration devices. Applications:...
 |
 |
Right angle electric worm gearmotor 33 - 200 rpm, 1/25 - 1/7HP VL Motion Systems Inc.
Motor powers from 1/25 to 1/7HP 12V,...
