Frontal mill cutter for thin walls is portable, thoughtlessly and easy to use; ideal when you is operate in miniature spaces or in workmanships on the field. Different models allows to operate with canals of express diameter among 3 and 63 mm. Ideals for the automatic orbital welding.
|
|
LEFON SquareDevil, the portable tube squaring machine is specially designed to flatten and bevel tube end, making it burr-free, and perfect straight to the axis of the tube. After facing, the tube would be ready for orbital welding or other tube fabrication, ideal for high purity / high sanitary industry use, such as Beverage, Dairy, Pharmaceutics, Water treatment, Food, Semi-conductor industry etc.
Key Feature:
* Faces and Bevel most metals including stainless steel, nickel and carbon steels, , chrome, copper-nickel alloy, aluminum
* Wide range of collets (clamp)/ OD Mounting Saddles available, to avoid any tube distortion
* Three SquareDevil model available, to work on tube from 1/8" OD to 4 1/2" OD
* High quality collets made from stainless steel rather than aluminum
* Can face and bevel tube wall thickness up to 10mm
* 120/220 V powerful Metabo electrical motor
* Micro feed system
* Supply full range of bevel and squaring Bit
|
|
Portable pipe cold beveling machines available for tube sizes 1/2" - 35" (12mm - 900mm) with pneumatic or electric or hydraulic motor.
Any bevel shape is achievable.
Special 100% automatic dedicated models GBC MINI AUTOMATICA and GBC BOILER 1-4 AUTOMATIC for heat exchangers, boilers, condensers industry. Indicated for following operations
- tube trimming
- tube weld removal for retubing
- welding preparation of tube and tube plate
All units up to max size 8" are available with automatic pneumatic locking device for quick set up operation.
|
|
|
|
|
|
Pipe Cutting and Beveling Machines with automatic feed module AVM.
A new highlight in the GF-Series of Orbitalum Tools!
The new GF machine for cutting and beveling of high, low and unalloyed metal pipes has demonstrated convincing operational results with large pipe diameters and safe and ergonomic serviceability.
A strong machine for demanding applications!
Advantages:
• For cutting pipes with ODs between 283 - 508 mm (11.14 - 20 inch) and pipe wall thicknesses of up to 15 mm (0.59 inch)
• Right-angled cutting without misalignment
• Burr-free and cold operating process
• Unique automatic process by the AVM feed module thus ensuring constant cutting
• Including a height-adjustable and robust lifting bench with a container for swarf collection
• The ergonomically designed handle enables a safer operating position; and cutting elbows is made possible without any further adjustments
• Multifunctional wrench for all setups on the machine
• Sturdy design with powerful drive
• High rotational moment for optimal cutting and beveling processes
• Optimal speed range of 50 - 163 rpm, ideal for cutting high-performance materials (Hastelloy, P91, etc.)
• Plug connection with quick-action coupling: for easy and comfortable replacement of the power cable.
• Optimized saw blade guard protects the user against flying chips
Your benefits:
• Reduced tooling and production costs
• An even higher operating life of the tools is guaranteed by the continual cooling system (available as special accessory)
• High operating efficiency
|
|
|
|
|
|
Having set the benchmark for pipe cutting and beveling machines for over 40 years, our new range of machines takes us even further forward. The new GF 4, GF 4 AVM, GF 4 MVM are now available!
Your benefits:
- Square, burr-free and deformation-free pipe end
- cold machining process, cutting in seconds
- Simultaneous or seperate cutting and beveling
- Cost-effective, increasing productivity
- Even longer tool life
What´s new?
- Optional feed module AVM or MVM for an automated or manual cutting process
- Locking mechanism prevents unauthorized usage and theft
- Weight reduction for ease of movement
- A new ergonomically-designed motor handle for a safer and more comfortable operating position, which also enables easier cutting of elbows
- Integrated laser pointer to determine the cut-off point
- 2 position aluminum clamping jaws to reduce chatter and enable smaller length of pipe to be machined
- 1 multifunctional tool for all adjustments on the machine
- Extended speed range (65-125 rpm), ideal for the cutting of high-perfomance materials (Haselloy, P91, etc.)
- Swivel cable with a quick-disconnect coupler for easy and quick replacement of power cables
- The new saw blade guard protects against flying chips and comes with a measuring port
|
|
|
Our original product and now an industry standard, the D.L. Ricci Corp. Clamshells are the best pipe cutting and pipe beveling machines on the market today. From the mini to the HD our severing and beveling clamshells have patented bearing technology and are easy to setup and operate.
|
|
|
|
|
|
The new GTB2T is the first of our "Next Generation" of end prep tools. Simple to set-up and operate, this ID mounted end prep machine delivers exacting surface finishes on pipe end-preps, valves, flanges, fittings and more.
Dependable and rugged, our BU Facer series make flange facing easy and inexpensive. These large diameter machines can be used to re-face all size flanges ranging from 10" to 110" OD. These industry proven facing machines are capable of tube sheet and flange facing in minimum setup time. The time tested solid ring design and interchangeable drive system provide a rigid machine capable of holding tight tolerances and creating excellent surface finishes
The 314 Beveler was created for quick set-ups and weld end preparations on pipe and tube diameters form 3" to 14" OD. Reliable and torque-free operation is accomplished with an automatic three jaw locking system that automatically centers the pipe beveling machine to the bore of the piping to be machined. Using the automatic chuck system, installation of the mandrel can be accomplished in less than one minute. The 314 pipe beveling machines also have an optional miter mandrel system for mounting in valves, fittings and short perch applications. The cutting head of the 314 Beveler is made of 4140 steel for rigidity and long life. The 3 cutting tool slots accept all configurations of high-speed form tool blades for versatile operation. The 314 Beveler is capable of form tool beveling, facing and ID counter-boring in one operation.
|
|

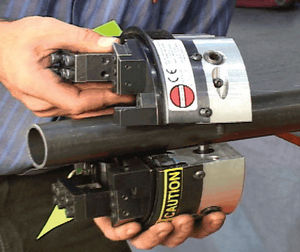

The MC or mini-clamshell was designed for on-site severing and beveling on small piping and valve systems.
These mini pipe cutting and beveling machines have a lightweight structure which incorporates our patented low friction bearing design. This adds strength, accuracy and leads to minimal wear. The MC quickly splits and easily mounts on in-line piping systems and the super compact design sets-up painlessly in tight places.
|
|
The series TUD express block is particularly pointed out to much thin pipes, to coo elettropulished pipes or in all those cases where the intern surface doesn't have to suffer mechanical or dimensional stress.
This macines operate on pipes of internal diameter among 4 and 168 mm. The system of patenteded rapid block allows an elevated productivity.
|
|
|
The machines of the series TU or BM operate with the block through a mandrel that is inserted in the pipeline. The tool post disk is able ascend from a minimum of two till four turrets allowing a progressive and continuous workmanship. The interval of diameters that is able to be worked goes from a minimum of 18 mm to a maximum of 600 mm, for the standard versions.
|
|
Caractéristiques :
Diameters 51 mm à 200 mm.
Thickness :
Weight : 14.5 Kg
Electric motor or pneumatic motor.
Tools
Standard tools
Special tools
External beveler,Internal beveler,Facing ,etc ....
Options :
Porte outils spéciaux
Special tools
Flange facing
|
|

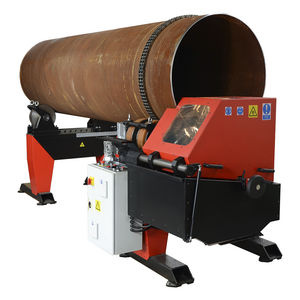

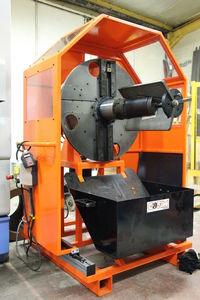

PBM-16 Technical specifications
Clamping range : 60 - 410 mm. (2" - 16")
Turning range : 60 - 330 mm.
Motor : 400V. - 3 ph. - 4,5 / 5,5 kW
Clamping : prism clamping, manual
Machining : carbide inserts
Max. wall thickness
: 25 mm. in one pass
Feed
: manual
Feed travel : 100 mm.
Turning speed : 36, 48, 72 and 96 rpm
Measurements : 1400 x 1100 x 1900 mm.
Weight : 2250 kg.
|
|
PBM-24 Technical specifications
Clamping range : 215 - 620 mm. (8" - 24")
Turning range : 170 - 620 mm.
Motor : 400V. - 3 ph. - 15 kW
Clamping : Prism clamp - electric
Machining : carbide inserts
Max. wall thickness : 45 mm. in one pass
Feed : electric
Feed travel : 100 mm.
Turning speed : 25, 38 and 50 rpm
Measurements : 3000 x 2300 x 1800 mm.
Weight : 13000 kg.
|
|
PBM-30 Technical specifications
Clamping range : 215 - 780 mm. (8" - 30")
Turning range : 215 -780 mm.
Motor : 400V. - 3 ph. - 18,5 kW
Clamping : Prism clamp - electric
Machining : carbide inserts
Max. wall thickness : 45 mm. in one pass
Feed : electric
Feed travel : 100 mm.
Turning speed : 20, 40 and 70 rpm
Measurements : 3500 x 2400 x 1800 mm.
Weight : 12000 kg.
|
|
PBM-4
Clamping range : 20 - 116 mm. O.D (1/2 - 4")
Turning range : 10 - 116 mm.
Motor : 400 V-3ph-50Hz -2,6 / 3,2 kW
Clamping : prism clamping, manual
Machining : carbide inserts
Max. wall thickness : 17 mm. in one pass
Feed : manual
Feed travel : 100 mm.
Turning speed : 96 and 195 r.p.m
Measurements : 90 x 74 x 130 cm.
Weight : 700 kg.
|
|
PBM-6 Technical specifications
Clamping range : 46 - 180 mm (1,5" - 6")
Turning range : 30 - 180 mm
Motor : 400V - 3 ph. - 4,5 / 5,5 kW
Clamping : prism clamping, manual
Machining : carbide inserts
Max. wall thickness : 25 mm. in one pass
Feed : manual
Feed travel : 100 mm.
Turning speed : 48 and 96 rpm
measurements : 1300 x 900 x 1450 mm.
Weight : 1250 kg.
|
|
|
|
|
|

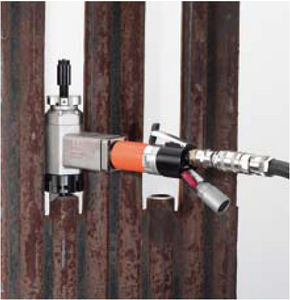

PROTEM HSB pipe facing and bevelling tools
PIPE BEVELLERS WITH HIGH SPEED
FOR THE OIL AND GAS INDUSTRY
AND PREFABRICATION WORKSHOPS
The US HSB series portable pipe beveling tools
are designed for high quality bevels, facing
and machining on pipe and tube for weld
preparations on all machinable alloy pipes
including stainless steel, duplex, super duplex,
inconel or any others.
With their wide range, they are perfect from
the smallest boiler tube application up to (according to the model used)
a
60” pipe heavy wall. They can all be equipped
with different motors with a wide selection of
horse power, electrical, or hydraulical drive.
Their rugged design features self accepting
torque system and self centering inner
clamping, which allow one skilled operator to
perform alone and extremely quickly, multiple
machine-like bevels, avoiding the dangerous
and slow grinding operation.
Each machine is equipped with standard
tool plates accepting multiple tool bits,
allowing up to four simultaneous machining
operations. Such operations may include
beveling, compound beveling or “J” prepping
on heavy wall, facing, and counterboring.
For more information :
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email : n.reicher@protem.fr
|
|
Key Features:
*ID Mounted Pipe Tube Beveling Machine
*CE Certified
*Able to bevel variety of material, including carbon steel, stainless steel and alloyed steel
*Driven by powerful electrical motor, up to 3 HP
*Pipe wall thickness up to 3 inch
*Adjustable beveling angle, any setting between 0º and 45º
*Beveling blade installation or adjustment only takes seconds
*Easy to setup beveling machine within minutes
|
|
|
|
|
|
The US series portable pipe beveling tools
are designed for high quality bevels, facing
and machining on pipe and tube for weld
preparations on all machinable alloy pipes
including stainless steel, duplex, super duplex,
inconel or any others.
With their wide range, they are perfect from
the smallest boiler tube application up to a
24” pipe heavy wall. They can all be equipped
with different motors with a wide selection of
horse power, electrical, or hydraulical drive.
Their rugged design features self accepting
torque system and self centering inner
clamping, which allow one skilled operator to
perform alone and extremely quickly, multiple
machine-like bevels, avoiding the dangerous
and slow grinding operation.
Each machine is equipped with standard
tool plates accepting multiple tool bits,
allowing up to four simultaneous machining
operations. Such operations may include
beveling, compound beveling or “J” prepping
on heavy wall, facing, and counterboring.
CONTACT AND INFORMATION
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email : n.reicher@protem.fr
|
|
|
Axxair develops and produces orbital bevelling machine which are going from GA120 to GA320 range. Most of the machines are evolutives into orbital cutting and welding machines.
|
|
SPECIAL BEVELING MACHINE.
This machine was developed for the offshore.
For more information, please contact us
|
|
PROTEM Beveling machine with automatic clamping
type US25CA
The US25CA portable pipe beveling tool is designed for high quality beveling, facing and machining on pipe and tube from 25 mm ID to 88.9 mm OD. The main plus of this ma-chine is its clamping system into the tube by simply acting on a pneumatic on/off distribu-tor which allows a clamping in 2 seconds only. The standard tool plate will accept up to 4 tool bits allowing to face, bevel and coun-terbore simultaneously. Once pre-set for large series or repetitive work, the US25CA is capable of performing repeatable high quality weld preparations on all machinable alloy pipes including stainless steel…
CONTACT AND INFORMATION :
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email: n.reicher@protem.fr
|
|
|
Edge-planing machine of tube of 20 mm to 780 Misters. Advance manual or equipped with an automatic feed. This simple machine of utilsation, and rapid ensures you one qualitée of machining irréprochable.
|
|
Chamfering machine PB 80
The PB 80 is the ideal partner for automatic and manual bar loaders. The PB 80 offers an economical solution for bar end preparation. The PB 80 can be used as a chamfering machine, a centering machine and a turning machine.
Specifications PB 80
30° Chamfering
ø 8-80 mm
Turning
ø 10-60 mm
40 max. length
Centering
ø 8-80 mm
Motor
0.9 / 1.65 kw
Drive
2 x 2 speeds
Speed 1
230 / 460 t/min
Speed 2
700 / 1400 t/min
Chuck
3 jaws
4 jaws option
|
|
Inside clamping beveling machine PROTEM US 150
The Protem US150 is a heavy duty portable pipe beveling tool designed for high quality portable bevelling, facing and machining on pipe and tube from 5.9’’ ID to 20’’ OD (150 to 508 mm). Each standard tool plate accepts multiple tool bits allowing up to four simulta-neous machining operations. Such opera-tions may include bevelling and OD.
The US150 features a self-accepting torque system and an integral dual right angle pneu-matic drive.The robust US150 is capable of performing repeatable high quality weld preparations on all machinable alloy pipes including stainless steel, duplex, superdu-plex, inconel, etc.
CONTACT AND INFORMATION
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email : n.reicher@protem.fr
|
|
|
The extension beyond the edge and bevel ( with angle of 30°, 35°?37.5° or 45°) of the metallic plates from 4 to 50 mm of thickness is able be performed from the machines of the series B.
|
|
|
|
|
|
The BM-20 is a new generation, easy to use, portable, heavy duty machine designed for beveling steel plates and pipes prior to welding. This bevelling machine is fitted with two milling heads each holding six inserts, allowing smooth operation and exceptional efficiency. One set of inserts can last for up to 2000 meters of bevelled steel edge and allows to work with an output around 1.5 meters/minute (depending on the amount of the metal being removed).The BM-20 incorporates many safety features. It has a state of the art electronic control module protecting the operator, the machine and tools. It is equipped with guide rolls, which make it easy and light to operate.
BM-20 TECHNICAL DATA
Power supply: 1,1 KW, 230 VAC, on request 110 VAC
Motor: inductive with increased start-up current
Motor speed: 2.820 RPM
Tooling: 2 milling heads with 12 square inserts
Standard angles range: 15-60º
Weight: 20 kg
Optional functions: Facing-off, Pipe bevelling, R3-rounding
Ordering No. 230 VAC: FRE-0075-10-20-01-0
Ordering No. 110 VAC: FRE-0075-10-10-00-0
|
|
PROTEM Inside clamping beveling machine type US30
BEVELLING MACHINE
END PREPARATION TOOL
The US30 portable pipe beveling tool is de-signed for high quality bevelling, facing and machining on pipes and tubes from 1’’ to 4’’ ID (30-114 mm). The standard tool plate will accept multiple tool bits, allowing up to four simultaneous machining operations.Such operations may include bevelling, facing, counterboring, compound bevelling and OD chamfering.
The US30 features a self-accepting torque system and an integral drive motor.
The robust US30 is capable of performing repeatable high quality weld preparations on allmachinable alloy pipes including stainless steel duplex, super duplex, in-conel, etc.
CONTACT AND INFORMATION :
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email : n.reicher@protem.fr
|
|
