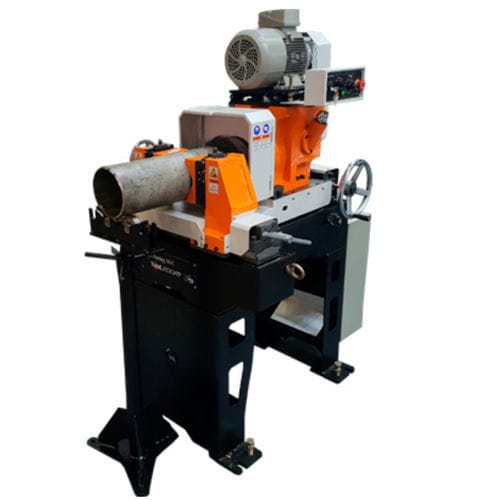

Pipe chamfering machine MFS series

electrictubemachine

7 several types available (1" - 118" OD) Wall thickness: 15 - 120 mm Max. diameter: 780 mm Max. Feed: 300 mm A heavy duty machine that creates the perfect welding preps quickly and with great precision. That is the Pipe Chamfering Machine Type MFS, the next generation of stationary pipe chamfering. Pipe Chamfering Machine - Pipe diameter OD - 1 - 120" (25,4 - 3.048 mm) Wall thickness - 0,59" - 4,72" (15 - 120 mm) Max. wall-thickness - 0,984" (25 mm) Feed - 11,81" (300 mm) Weld prep - V-bevel Beveling shapes (automatic machines) Beveling V-Bevel J-Bevel U-Bevel Z-Cutting PRISM CLAMP To clamp the pipes, the tube chamfering machine uses a sophisticated prism clamp that holds all of the tube sizes within the range of the machine firmly in place. ROLLER BENCHES The RBT roller benches have been especially designed for use in combination with the MFS. The trough system with steel rollers makes it possible to roll the tube easily by hand into the machine. Just as the MFS machines the RBT roller benches are extra strong and robust and exceptionally suitable for heavy work.
