| CAT PUMPS offers a complete line of TRIPLEX CORROSION-RESISTANT STAINLESS STEEL PUMPS for sea water reverse osmosis desalination, chemical injection, wastewater re-injection, DI water gas turbine misting, oil processing and CO2. Cast 316SS and Block-Style 316SSL and Duplex alloy liquid-end construction provides strength and compatibility. Special flushed models permit an external flush for lubricating with low lubricity liquids and cooling with high temperature liquids. Compatible system accessories provide system pressure setting and overpressure protection. CORROSION-RESISTANT STAINLESS STEEL PUMPS are available from .5 GPM to 320 GPM. Key features include long-life, low-maintenance, high energy-efficiency. |
|

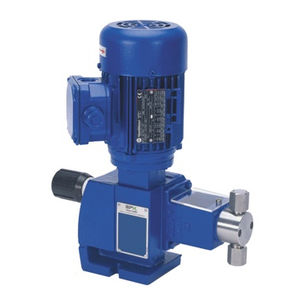

Piston pumps are precise and – compared to diaphragm dosing pumps – almost pressure-independent metering units. The flow rate changes in proportion to the stroke length and can thus be adjusted to very small values. Fields of application are – among others – process engineering and chemical processes, i.e.: wherever the medium must be metered precisely.
The FEDOS E / DX piston dosing pumps from Lutz-Jesco are available at flow rates between 0.17 and 31.5 l/h, with or without microprocessor control. Depending on the size of the pump, maximum pressures between 30 and 200 bar are admissible.
If no control is required for constant metering, the motor is connected directly to the terminal box. In this case, FEDOS E pumps are used. To change the flow rate, either the stroke length can be adjusted mechanically, or the speed of the motor is controlled by means of a separate frequency converter.
FEDOS DX pumps are used if an integration in controls or automatic control systems is requested.
FEDOS DX pumps allow the adaption to a large number of different control systems and system monitoring equipment. The signals required for the external avtivation of the pump can be simple voltage-free closing contacts from water meters or controllers or analog 0(4)...20 mA signals.
|
|

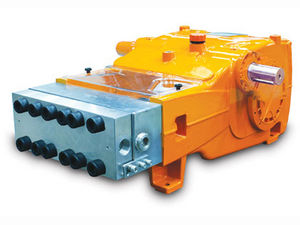

| CAT PUMPS offers an extensive line of TRIPLEX, RECIPROCATING PLUNGER PUMPS from .5 to 320 GPM for reverse osmosis desalination, chemical injection, hydrostatic testing, DI water gas turbine misting or industrial cleaning. Our TRIPLEX PLUNGER PUMPS feature a static Lo-Pressure and Hi-Pressure seals supported by adapters or seal cases and are capable of constant high pressures up to 7000 PSI. Our TRIPLEX PLUNGER PUMPS feature heavy-duty crankshafts, high-strength connecting rods, dual bearings, forged brass or stainless steel manifold heads, an exclusive, unique seal design and concentric solid ceramic plungers. Custom flushed pumps permit an external flush liquid for added lubrication with low lubricity liquids such as DI water and cooling when pumping high temperature liquids. Select your pump with brass, NAB, 316SS or Duplex alloy liquid-end construction for compatibility. Our TRIPLEX RECIPROCATING PLUNGER PUMPS offer long-life, low-maintenance and high energy- efficiency. |
|
Together with our standard stainless steel materials matching, we can offer special stainless steels, titanium or bronze.
Temperature ranges up to 350 degrees C. e.g. pumps for thermo oils.
High capacity - external gear pump
Gear dosing pump Stainless steel gear dosing pump in special design
HP radial piston pump (closed design)
High capacity internal gear pumps with integral pressure limiting valve for low noise operation |
|
Among the most efficient, with the smallest footprint in the industry, the Waukesha Cherry-Burrell Homogenizer delivers more output for its plant space than any other. Advanced, fluid-dynamically engineered homogenizing valves achieve the desired degree of dispersion/emulsion with lower pressures, requiring less energy and extending the life of moving parts.
- Precise, non-adjustable plunger seal; double seals standard, single seals optional.
- Injection cooled and flushed seals resulting in increased seal life.
- Headblocks with hardened replaceable valve seats.
- Sanitary overpressure relief device.
- Modular valve assemblies; single or double stage, manual or hydraulic.
- Multiple plunger sizes available for each model.
- Easy to maintain with front loaded seals and separate drive components.
- Also available without homogenizer valves for service as High Pressure Plunger Pump
|
|
GENERAL SPECIFICATIONS
/- 1% Steady State Accuracy over a 10:1 Turndown (w/constant speed drive)
Continuous Duty / Severe Service Design
Polar Crank Drive Design
Rugged Cast Iron Gear Housing
Modular Design
Multiplex Capability
Variable Stroke Length (non-last motion)
Integral Pressure Lubrication System
Double Ball Check Valves
Pressures up to 10,000 psig (690 bar g)
Flows up to 1,225 gph (4,637 lph)
Meets API Standard 675
|
|
The Hypro 2535S triplex plunger pump is designed for durability, top performance, and convenient servicing. It achieves up to 38 gpm (144 lpm) and 1200 psi (83 bar). The 316 stainless steel two-piece manifold minimizes washout and corrosion. A strong power end including oversized crankshaft, bearings, and connecting rods easily handles abuse caused by start-up and intermittent operation.
Backed by the best warranty in the industry, Hypro pumps are designed for, and not adapted to, the car wash industry, resulting in pumps that deliver higher pressure and increased reliability. |
|
| Self-serve carwash and tunnel prep unit owners across the country are making the switch to Hypro’s 2300 Series plunger pumps. Backed by the best warranty in the industry, Hypro pumps are designed for, and not adapted to, the car wash industry, resulting in pumps that deliver higher pressure and increased reliability. |
|

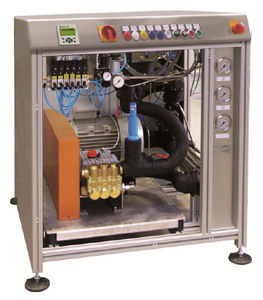

| CAT PUMPS offers the convenience of a custom engineered PUMPING SYSTEMS for high pressure wash down, jetting, chemical injection, wet blasting, in-plant cleaning, reverse osmosis, liquid transfer. Each custom PUMPING SYSTEM is built to your specifications and application eliminating the design, multiple vendor sourcing, assembly and testing from your busy schedule. Each PUMPING SYSTEM has a rugged reinforced base of steel with a 2-mil epoxy finish or 304SS with drive options including electric, gas, diesel or hydraulic. All PUMPING SYSTEMS are flow and pressure tested and available with short lead times. Choose a portable single pump, a large capacity 320 GPM pumping system or multiple PUMPING SYSTEMS to meet fluctuating demands. |
|
| DPP offers an assortment of quality reciprocating piston pumps used in a wide range of applications, from critical medical devices to chemical dosing/metering equipment and laboratory analysis equipment; all superbly manufactured to the highest possible standards. Tests show that the consistency of our product performance is second to none, which makes DPP the first choice for very low controlled and repeatable flow application requirements. |
|
DPP can design, develop and customise using their state-of-the-art technology and unique know-how to make a specific pump tailored to your exact requirements.
If you have a complex or difficult application and you think the pump or valve you require is not readily available we can utilise our existing modular product range and highly developed technology to design and manufacture a tailored solution to meet your exact requirements. |
|
The EcoDry M incorporates a dry sliding mechanism without the need for oil or hydrocarbons.
Through the further developed and optimised compression processes, the EcoDry M 15/30 attains with three compression stages a base pressure (total) in the low 10-2 mbar range.
Since the EcoDry M 15/20/30 may be operated either vertically (as normally delivered) or horizontally, this pump is highly flexible when it has to be integrated into the customer’s system.
Advantages to the User
Low maintenance, free of oil and bearing lubrication, free of hydrocarbons
Extremely low particle emissions on the intake and exhaust sides
Rugged and most reliable
Low power consumption
Service friendly
Air cooling
Plug & play
Good pumping speed at low base pressure
High water vapour tolerance (gas ballast standard)
No grease lubricated bearings in the vacuum section
Leak tight
Compact size
Runs at 1000/1200 rpm (50/60 Hz mains)
Rugged full cross section exhaust valves
For both horizontal and vertical operation
Typical Applications
Applications in physics
Loadlock chambers
Transfer chambers
Mass spectrometers
Electron microscopes
Lighting
Thinfilm coaters
Freeze drying
Forevacuum pump for dry high-vacuum systems
Pumping of oxygen concentrations over 21 percent by volume upon request |
|
| CAT PUMPS offers a selection of industrial triplex high-pressure PISTON PUMPS for cleaning and sanitizing. Our triplex high pressure PISTON PUMPS use a dynamic seal that moves through a cylinder and deliver constant pressures up to 1500 PSI. Our PISTON PUMPS feature our patented sleeved-piston rod and UNIFLOW design providing easy wet-end service and excellent suction capabilities. The triplex PISTON PUMP Uniflow design delivers a very smooth, low pulsation flow. |
|
| As well as diaphragm and cup seal pumps, we produce unique linear-shuttle pumps that have only a single moving part, making them far more efficient and reliable than traditional pumps. |
|
They are backed by more than 70 years of experience in pump and air system technology, and include models specifically designed for popular applications.
They include:
Oil Pumps & Packages: Piston and diaphragm pumps to handle all types of motor oil, gear oil, and transmission type fluids. These pumps are designed to pump from different sized drums and tank units.
Grease Pumps & Packages: Grease pumps and pack
ages designed to handle different drum sizes and applications in the workplace.
Specialty pumps: Pump designed for the purpose of evacuating and filling tires with calcium chloride ballast solution. Fuel antifreeze/water blending pump |
|
| Diener Precision Pumps manufacture the highest quality and most accurate precision reciprocating piston pumps in the world. With flow ranges from 0.01ml per stroke up to 5ml per stroke our pumps are designed to give optimum performance over a wide range of applications, including chemical dosing & metering where a controlled volume of fluid needs to be achieved consistently. |
|
| High overall efficiency at very low speed. Low noise. High speed range. Above-average lifetime. Optimal price / performance ratio. Continuous self lubrication and cooling through the inflow. |
|
| Kinney KC & KTC Series Multi-stage rotary piston vacuum pumps provide pumping speeds of 5-112 CFM (8-190 m³/h) with ultimate pressures of 0.2 milliTorr (0.027 Pa). Our KTC series vacuum pumps include our exclusive triplex piston design to eliminate vibration. |
|
| FMI pumps are modular in design.The Pump Head Modules can be easily removed for cleaning or replaced with a spare pump head for use with different fluids. Some customers have separate pump heads for use with each fluid handled or flow rate desired. |
|
Dry running piston pump. Well suited for applications requiring high pressures. Mainly used as a compressor.
Free flow: 365 l/min
Pressure: 12 bar max.
|
|
| The "EL" Series with its high performances 40/43 Hp power, is used for the drain and the sewer cleaning equipments, for washing of city solid waste container of medium sizes, car washing, for medium industrial filter presses cleaning, for sweeper and cleaner street. We have extended the range with version ELR with 1500 rpm. gearbox. |
|
| The "GLR" Series, with requested power of 73/75 Hp and at 1.500/1.800 rpm gearbox. We have constructed the GLR in orderr intemediary performances between the EL an to the SLR pumps. The GLR is destined to the sewer jetting cleaning application, and the heavy industrial cleaning, where great reliability is priority. |
|
| The "ECH" Series has been studied for the cleaning high performances up to 500 Bar. This range is normally used for water jet blaster, for ship -monuments-building- cleaning and rot jet equipments. This model need 40 Hp power. |
|
| The "SLR" Series, with high performances requested 110 Hp, and 1.500/1.800 Rpm gearbox, is used for jetting drain and sewer cleaning equipment, for filter presser cleaning, for industrial washing plants. The good project, the optimal materials employed, have produced the SLR pump with high characteristics of performances and reliability. |
|
| The "C" Series need 25 Hp power, is used for the washing of city solid small waste container, equipments for filter presses washing and tanks cleaning. |
|
| ARO piston pumps provide industry proven dependability, economy, and precision control for the delivery of a wide range of flowable materials. The efficient, simple design and construction of ARO piston pumps are the reason they are recognized as one of the most dependable, versatile and accurate on the market. Whether you’ removing a small amount of low viscosity fluid a few feet or a large amount of high viscosity material a longer distance, ARO has a pump to meet your application needs. |
|
| Rotary piston pumps for corrosive media and very accurate dispensing, various pump heads are available, flow rates up to 2,3 liter/min |
|
The radial piston pumps consist of radially arranged, valve controlled pump cylinders. Higher delivery flows can be created by stacking of up to 6 radials on a common shaft. The pump is usually driven by an electric motor, which is connected with the pump by means of a bell housing and a coupling.
The closed pump housing permits "in tank" installation (hydraulic power pack) as well as the common external pump/ motor installation (pump with motor). The possibility of a radial piston pump with several pressure outlets (several equal or differing delivery flows) is particularly innovative.
Type RG utilizes slide bearings and is intended for extreme application conditions to increase the service life.
Complete hydraulic control systems can be created by directly mounting
various connection blocks and valve banks to the cover plate of the
hydraulic power pack. |
|
The Moog RKP pump, is a radial piston pump that has served the industrial market for over two decades. This product is a proven design with high reliability and a large selection of control options. It is well-respected in the industry for its rapid response times, high volumetric efficiencies, low noise levels, compact size and robust design.
Available in 7 pump sizes between 19 cc and 140 cc per revolution, the RKP pump has maximum speed ranges of 1,800 to 2,900 rpm. High pressure versions and multiple pump arrangements are available.
Also available are other hydraulic products such as servovalves, servo-proportional valves, cartridge valves, directional valves,lintegrated hydraulic manifold systems, electronics and accessories.
Our pumps are known for long service life and when you need maintenance or repairs, ask for Moog Authentic Repair Services.
|
|
|
|
