Plunger pump 3D3S
waterlubricating oilwith electric motor

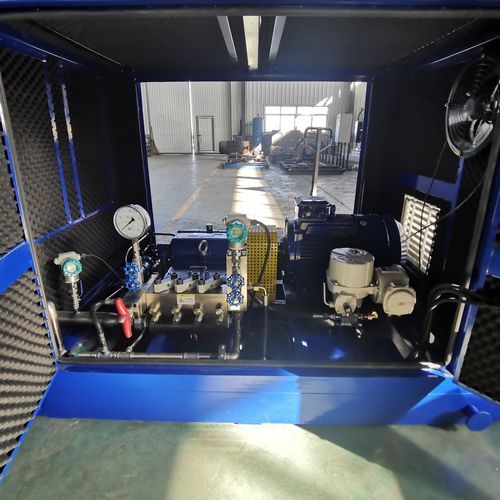

Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor
Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor
Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor - image - 2
Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor - image - 3
Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor - image - 4
Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor - image - 5
Plunger pump - 3D3S - Tinajin Harvest - water / lubricating oil / with electric motor - image - 6
Add to favorites
Compare this product

Characteristics

Technology
plunger
Fluid
water, lubricating oil
Operation
with electric motor
Priming
self-priming
Mobility
stationary
Domain
for the metallurgical industry, industrial, for the chemical industry, for water treatment, for the pharmaceutical industry, for the petrochemical industry, for the mining industry, for maritime applications, For the environmental industry, for the transportation industry, for the extractive industry
Applications
cleaning, transfer, high-pressure, service, treatment, washing, for water-jet cleaning, dredging, descaling, test, for high-pressure applications, for tube and pipe cleaning
Material
cast iron
Fluid specification
for low-viscosity fluids
Voltage
380-415V
Protection level
standard, abrasion-resistant, IP55
Other characteristics
compact, high-efficiency, high-performance, OEM, dry, high-flow
Flow

Min.: 91 l/min
(24.03966 us gal/min)

Max.: 240 l/min
(63.40129 us gal/min)

Pressure

Min.: 1,450 bar
(21,030.472 psi)

Max.: 2,800 bar
(40,610.567 psi)

Length

Min.: 60 cm
(24 in)

Max.: 150 cm
(59 in)

187 cm
(73 in)

Width

Min.: 60 cm
(23.62 in)

Max.: 160 cm
(62.99 in)

226.5 cm
(89.17 in)

Height

Min.: 60 cm
(23.62 in)

Max.: 160 cm
(62.99 in)

100 cm
(39.37 in)

Weight

Min.: 300 kg
(661.39 lb)

Max.: 1,500 kg
(3,306.93 lb)

Description

If the high-pressure pump fails, first of all, you should immediately dismantle it blindly without knowing where the failure is; second, there are no special tools and often damage the original good parts. The best way is to repair at an experienced and large-scale maintenance point, and replace overage parts and some wearing parts in time. Under normal circumstances, the high-pressure pump should be repaired every six months to prevent working with illness. During the non-use period, the high-pressure pump should be lifted away from the water source in time, and the water accumulated in the high-pressure pump should be drained, especially in cold winter. Then put it in a dry place, and qualified users can also apply butter to the key parts of the high-pressure pump, and add lubricating oil to the bearings to prevent parts from rusting. In addition, the non-use period of the high-pressure pump is not as long as possible. If it is not used for a long time, it will not only easily corrode the parts, but also reduce the service life of the high pressure pump.
